TACTICAL HUB // THE HARDWARE
[CARETTA SPECIFICATIONS]
[CARETTA DATA SHEET]
Direct cable connection to OBD II compliant ports (EURO 4/5) without Bluetooth dongles. Plug-and-play control via BMW Multicontroller (Wonderwheel) on supported GS models.
Features a Battery-Bypass Mode that powers the device directly from the bike's stator. This protects internal Li-ion cells from thermal degradation during extreme heat operation.
Quick-release locking cradle utilizes a "free-float" dampening system to isolate the tablet core from high-frequency engine vibrations. Molded from impact-resistant glass-fiber filled nylon.
LTE hardware is optimized for the EMEA region, providing voice (VoLTE) and data. Fully compatible within the EU; operates as a WiFi-only device in other territories unless verified by local GSM providers.
[CI PAD v4D SPECIFICATIONS]
[CI PAD v4D DATA SHEET]

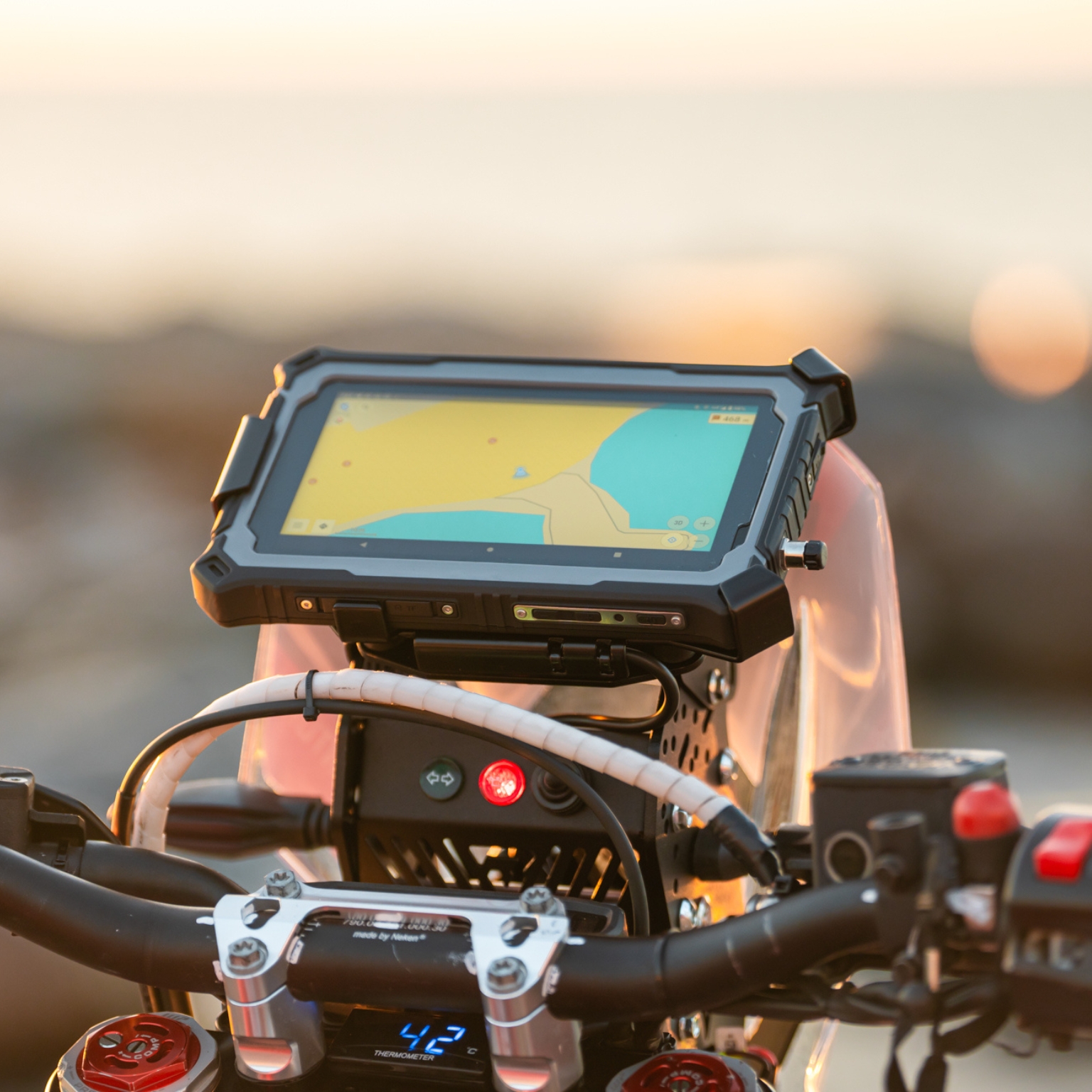

Highest LCD brightness available. Delivers up to 2600 nits nominal panel output, with 2200+ nits on the user side, ensuring flawless readability in direct summer sunlight.
Engineered to survive extreme rally environments. Tested to withstand drops from 1.8 meters and endure up to 2 tons of shock pressure. Metal alloy reinforcement ensures survival where generic electronics fail.
Smart power detection allows the device to automatically start when charging power is detected from the bike, and automatically turn off when the power supply is cut.
Equipped with a dual-band (L1+L5) GNSS chip providing up to 5 location updates per second. Simultaneous tracking of GPS, Glonass, Galileo, Beidou, and SBAS for sub-meter accuracy in deep canyons.
[TERRAIN COMMAND III SPECIFICATIONS]
[TERRAIN COMMAND III DATA SHEET]
The system is smartly divided into a ruggedized electronics "Hub" and a lightweight "Button Section" for user input. In many situations, pressing a button is simply more practical than using a joystick while riding.
Internal electronics are potted in high-grade epoxy to prevent vibration fatigue and moisture ingress. Completely water and dust sealed to endure the harshest environments without compromise.
Powered directly via the motorcycle's 12V electrical system. Eliminates the risk of dead batteries mid-journey and the need for internal maintenance.
Combine the Terrain Command III Hub with standard rally buttons (ICO and F2R compatible). Effortlessly switch between tripmaster control and tablet operation using the same set of buttons.
Combine the Terrain Command III Hub with the Carpe Iter Trimpaster HUB and take control of ICO compatible external tripmasters. Switch between tripmaster and GPS app control by button click as you transition between rally raid or GPS race or a weekend ride.

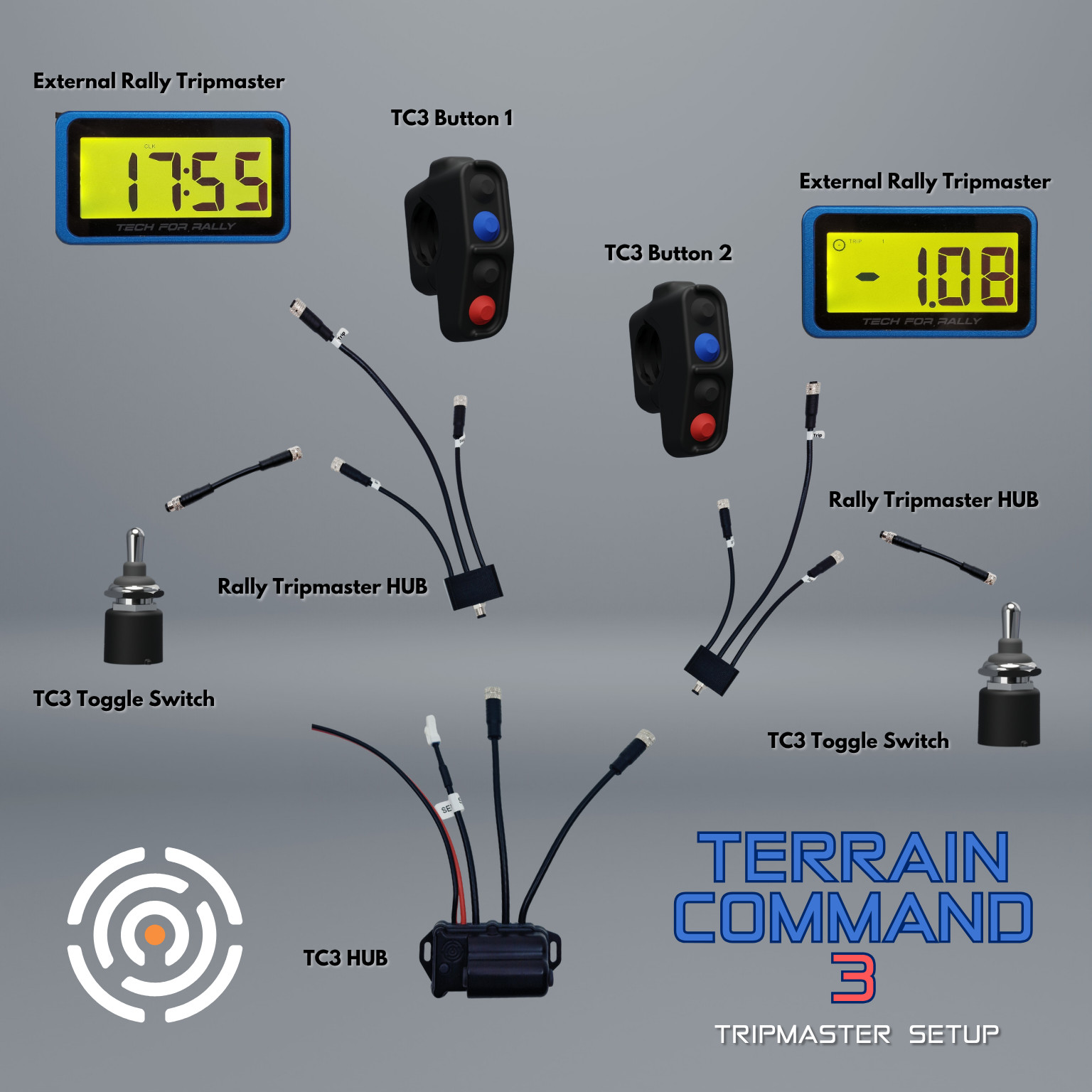

[TERRAIN COMMAND 3 TOGGLE SYSTEM // TRIPMASTER INTEGRATION]
Required base unit (or TC II v53+).
Mandatory mounting interface.
Choice of 6 styles (A/B Index/Thumb/Dual).
Required for Dual setups (1 per section).
Required for Tripmaster Hub integration.
[TERRAIN COMMAND III TOGGLE SWITCH // TRIPMASTER INTEGRATION]
Replace cluttered, multi-remote setups with a single, seamless interface. By consolidating control of up to 2 Tripmaster units and your Android navigation device, we reduce cognitive load, allowing you to maintain grip and focus during high-speed technical sections.
Off-the-shelf gear forces you to adapt; our system adapts to you. Utilize the Carpe Iter Controller App to tailor button mapping to your specific muscle memory. Our ecosystem is built on real-world failure, providing an indestructible interface that ensures you stay on course while others are sidelined.
CNC-machined aluminum with IP68-rated sealing. Unlike lab-built electronics, our toggles are engineered for the trail, ensuring that tactical command—whether digital roadbook or tripmaster adjustment—is always reliable, even in the harshest rally-raid conditions.
Designed to bridge legacy rally hardware and modern digital power. Combine with the Tripmaster Hub for seamless switching between traditional rally setups and modern GPS navigation. Replaceable 12mm/18mm levers allow for precision fine-tuning of your cockpit ergonomics.
[ADVENTURE CONTROL SPECIFICATIONS]
[ADVENTURE CONTROLLER DATA SHEET]
Magnetic sensing technology replaces traditional contact potentiometers in the joystick. This ensures that sand, mud, and water cannot degrade the signal or cause mechanical drift over time.
The internal circuitry is vacuum-potted in specialized epoxy. This creates a monolithic block that is immune to vibration-induced component failure and provides total resistance to pressure washing or submersion.
Direct vehicle power integration eliminates the risk of dead batteries mid-journey. The system includes internal regulation to handle voltage spikes common in technical motorcycle electrical systems.
Features a dedicated port for physical wheel sensors, allowing for "real distance" measurement. This bypasses GPS lag or signal loss, providing precise odometer correction for roadbook navigation.
[BMW CONTROL SPECIFICATIONS]
[BMW CONTROL DATA SHEET]
Experience true plug-and-play integration via the BMW Multi-Controller (Wonderwheel). Intuitively command navigation, media, and apps without removing your hands from the bars. No aftermarket hacks required.
Enhances functionality with four fully programmable buttons mounted directly to the e-throttle grip. Designed to blend seamlessly with OEM aesthetics while leaving original BMW controls fully functional.
Unlocks the ability to monitor essential live telemetry directly on your display. Stream speed, engine RPM, and current gear straight into the NGH interface with minimal latency.
Provides power pass-through capabilities allowing you to connect and power a Carpe Iter Pad, BMW Connected Ride Cradle, or additional accessories directly through the hub's infrastructure.

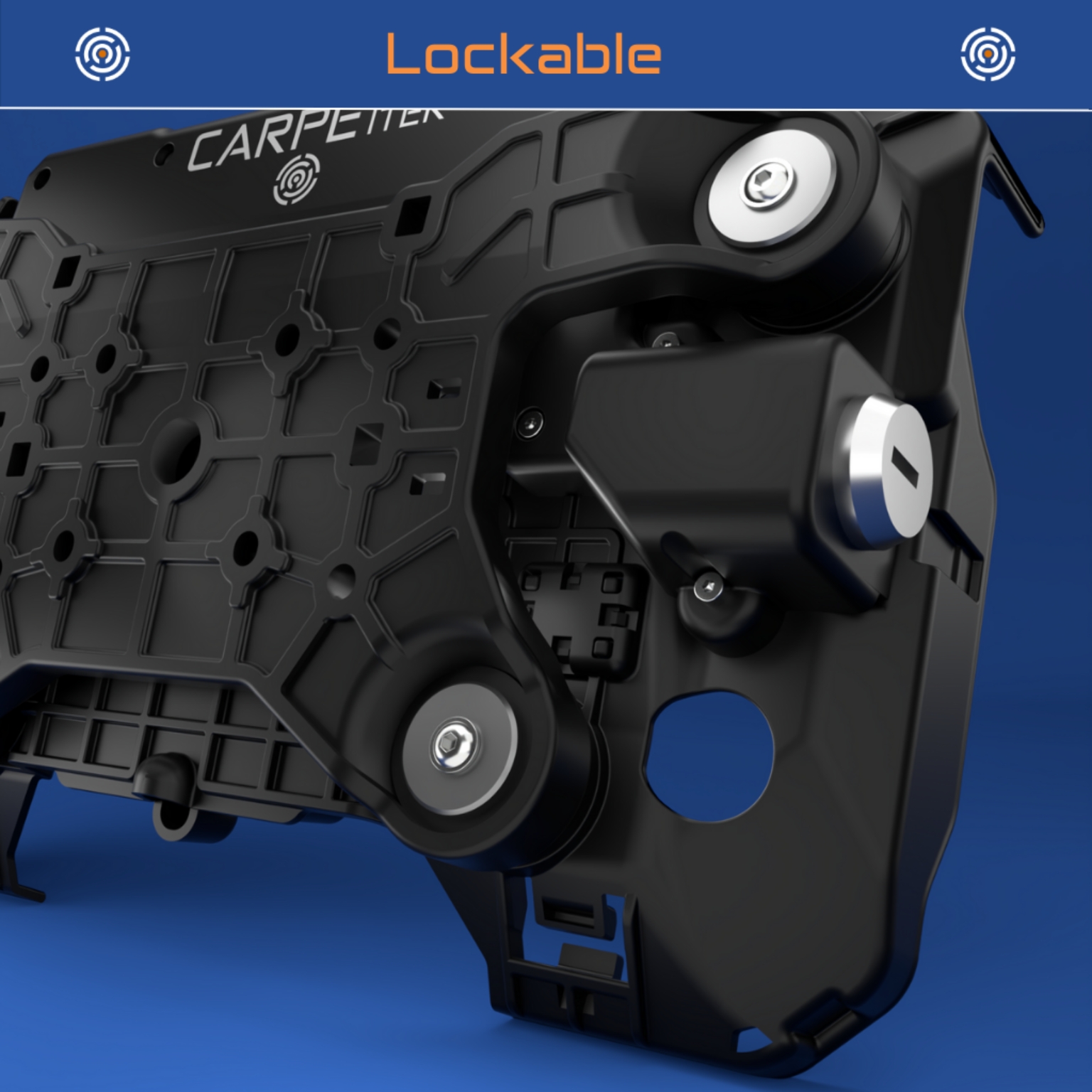

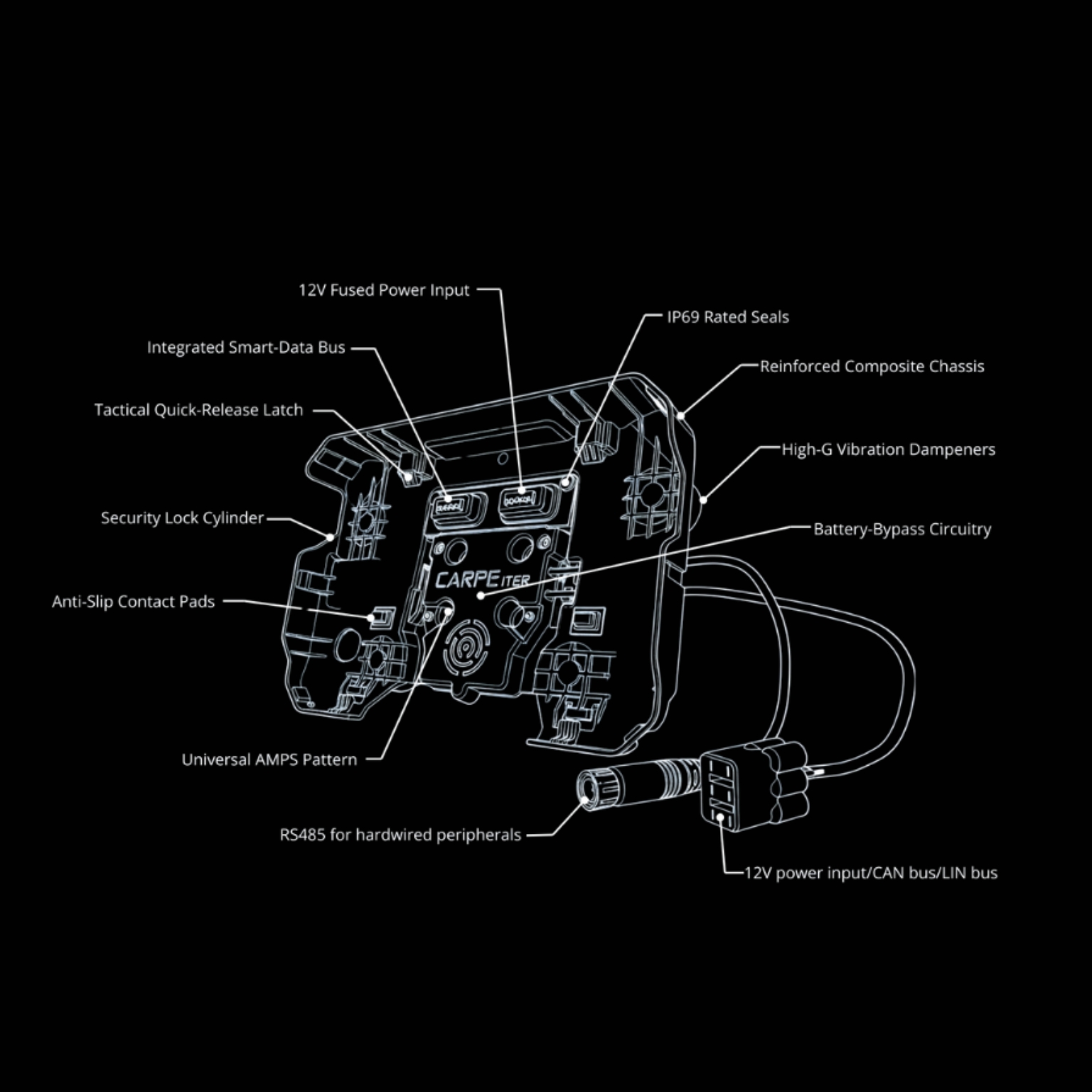

[CARETTA CRADLE SPECIFICATIONS]
[CARETTA CRADLE DATA SHEET]

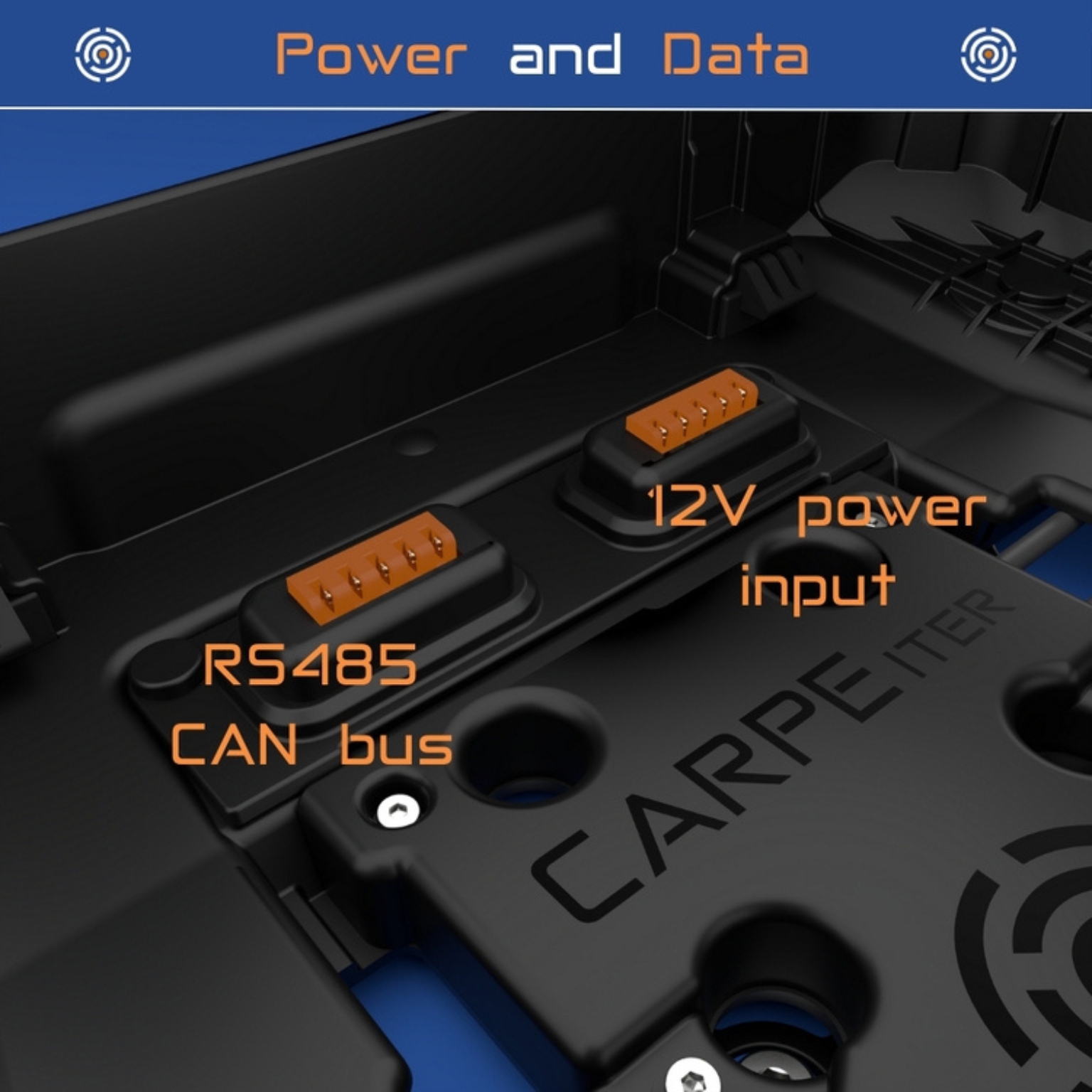

Connector pins are “live” only when the Caretta is inserted, preventing short circuits if the exposed cradle is hit by water or metal objects. Embedded stabilization handles electrical spikes, while auto-sleep mode prevents vehicle battery drain.

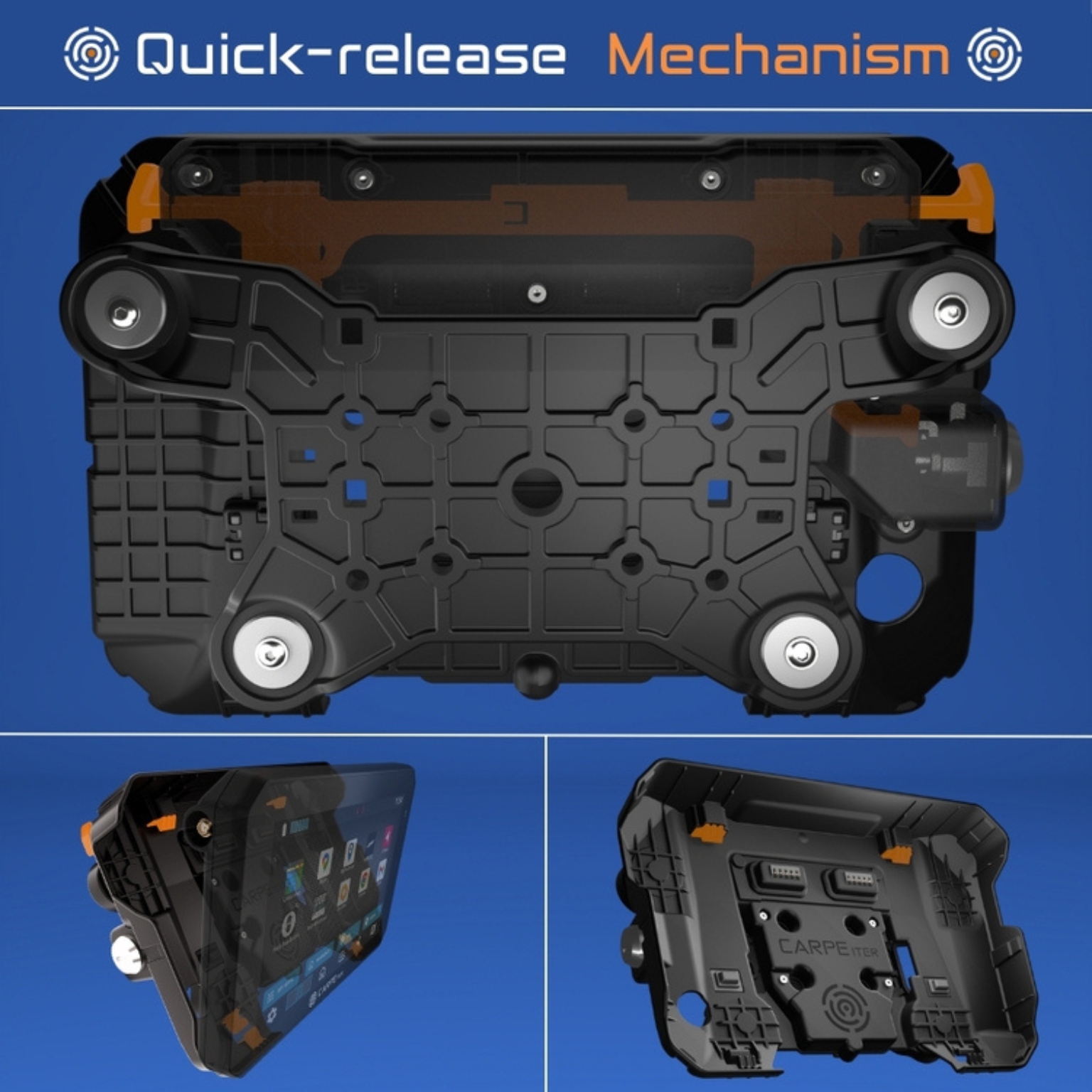

Molded from highly resilient nylon with a lockable slide-and-click insertion to prevent theft of opportunity. The release lever is bi-directional—if mud or debris clogs the spring mechanism on the trail, you can manually force the latch closed to secure the device.

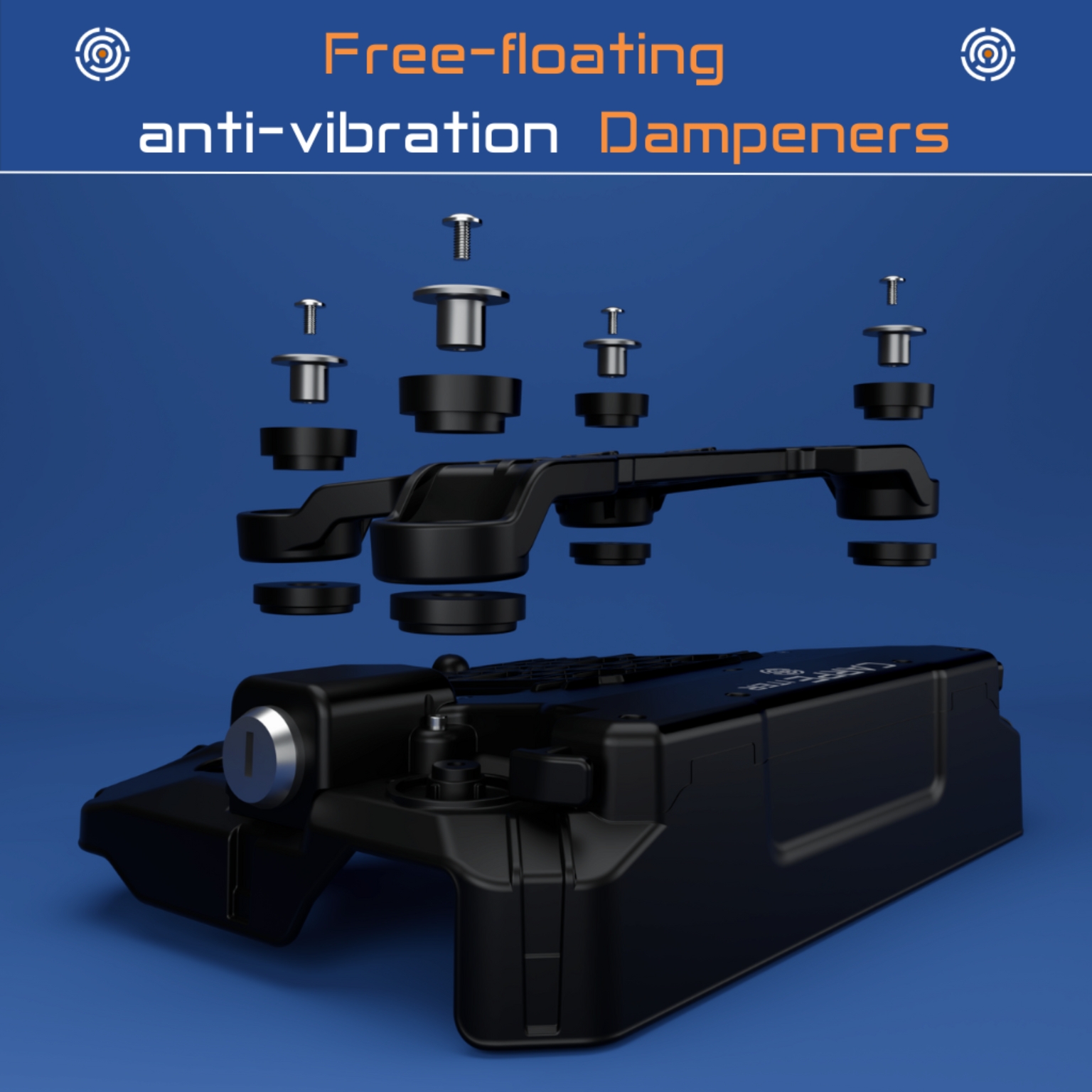

A specialized “free-float” system utilizes high-quality silicone dampers to isolate the device mounting points from the chassis. This effectively prevents the transfer of high-frequency engine vibrations to the tablet hardware.
The cradle acts as an intelligent hub, ensuring data communication with the bike and peripherals. It allows direct cable connection to the bike's OBD (no Bluetooth dongle needed) and plug-and-play capability on BMW models via the Navigator socket.

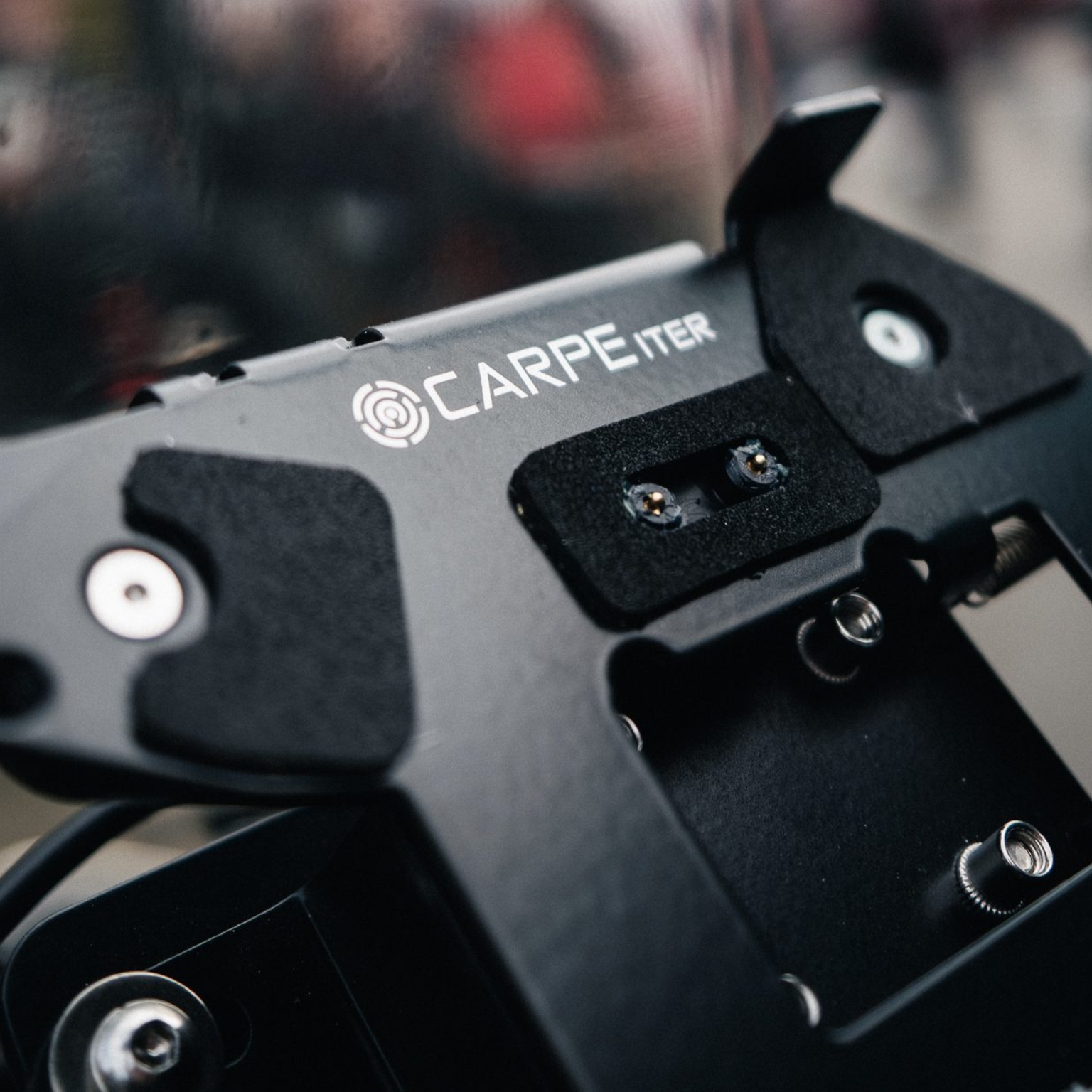

[V4 HOLDER SPECIFICATIONS]
[V4 HOLDER DATA SHEET]
The Active Holder utilizes pogo pins for continuous, cable-free contact charging, with the option to plug in the M8 cable simultaneously for extreme reliability. The Passive Holder uses the M8 threaded cable exclusively, which is highly recommended for aggressive off-road environments or vibrating single-cylinder bikes.
The black "Auto-Switching" power source is programmed to activate only when input voltage exceeds 13.6V (when the motorcycle engine is running), preventing vehicle battery drain. For stators that cannot maintain that threshold, an "Always On" red module is available.
Constructed entirely from powder-coated aluminum and stainless steel for a rust-proof, 250g lightweight footprint. Includes a physical lock and key to prevent theft of opportunity, while the internal spring system securely grips the CI Pad even when unlocked.

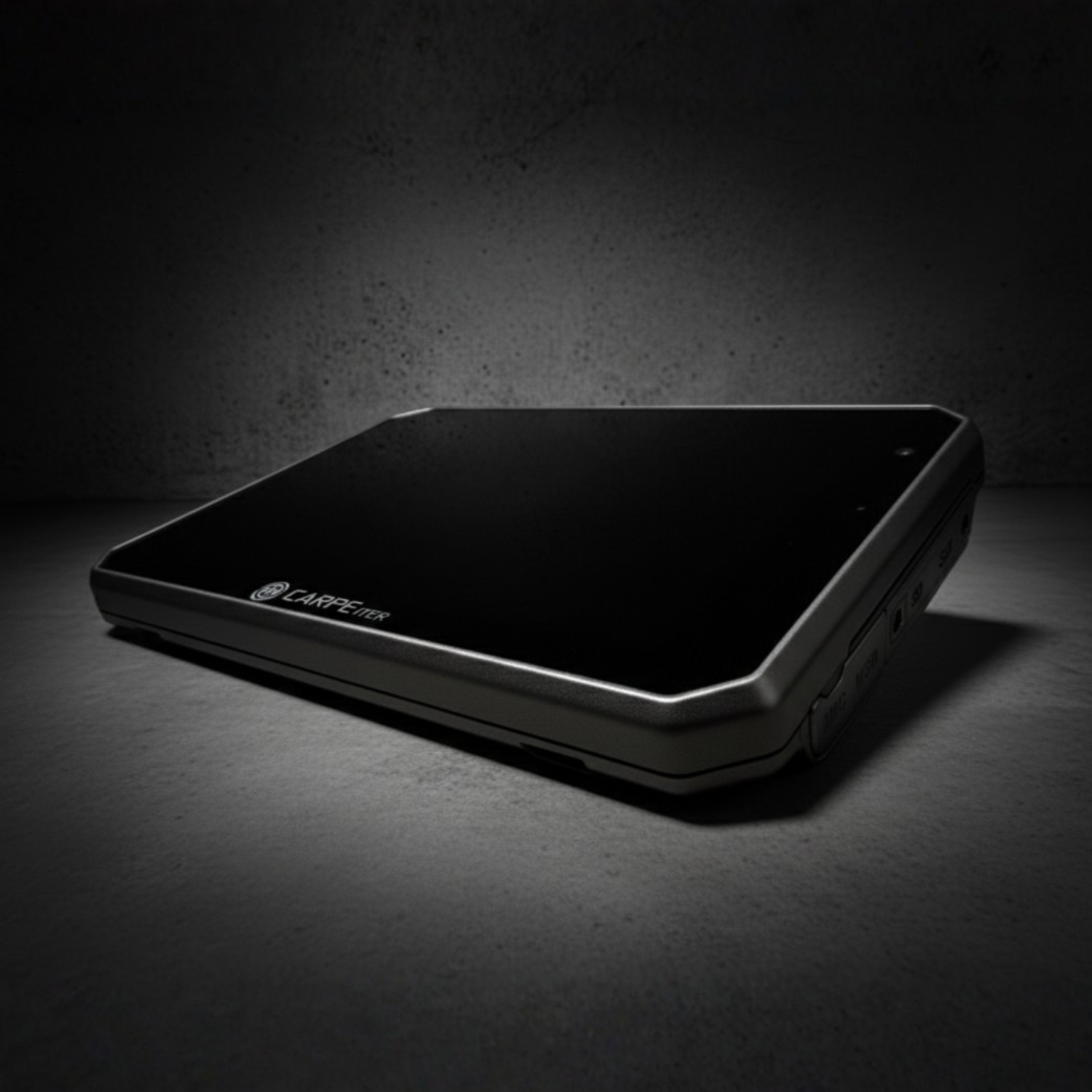

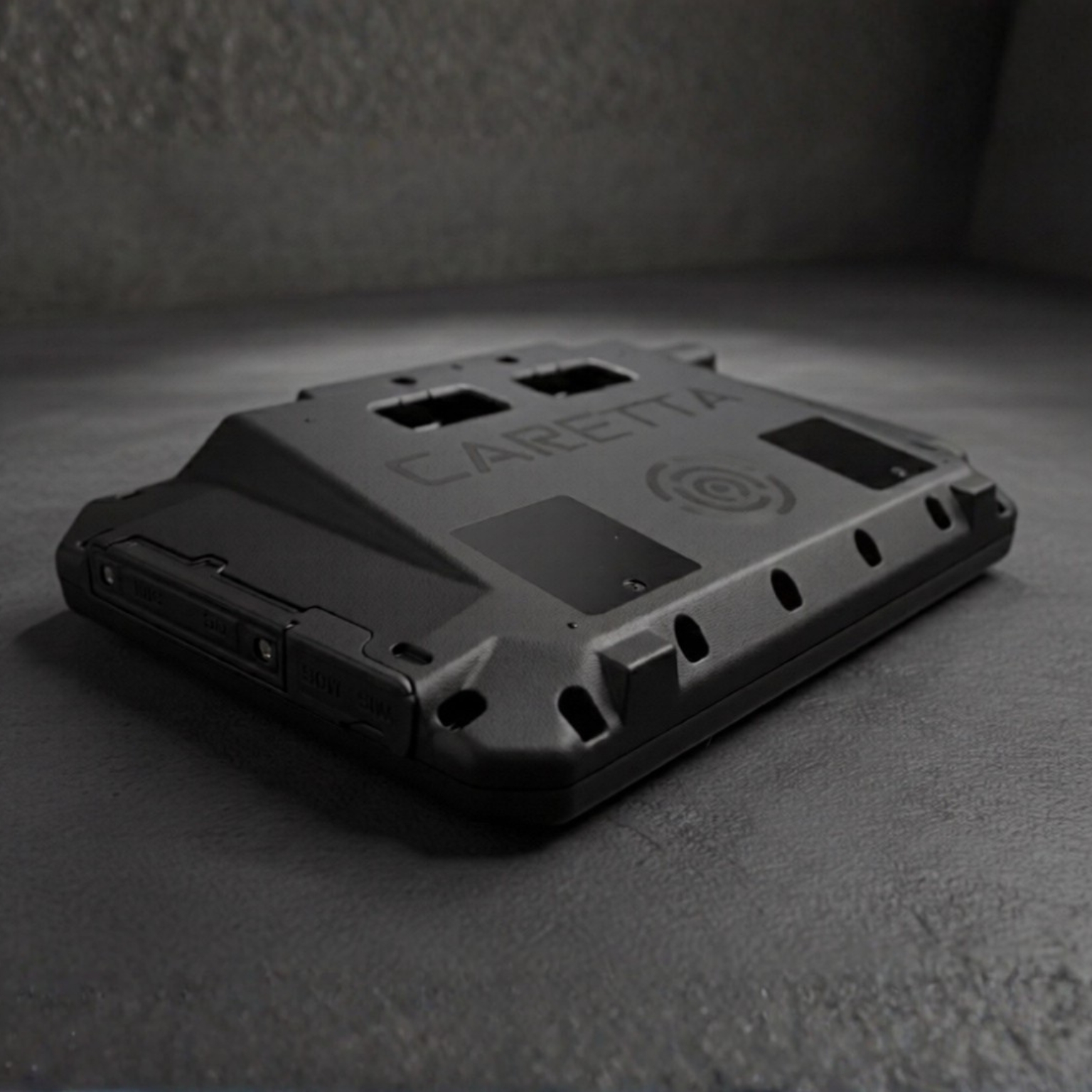

CARETTA
Caretta is a purpose-built satellite navigation device engineered specifically for motorcycles, quads, and side-by-sides. Combining the rugged reliability of dedicated marine-grade hardware with the limitless ecosystem of Android 14, Caretta delivers an unbeatable price-to-value ratio for riders who demand elite performance from their cockpit setup.
- Play Store Advantage: Run any Android navigation app natively.
- Off-Bike Versatility: Detach to browse the web, check emails, or stream media.
- True Bike Integration: Features plug-and-play BMW Wonderwheel support, direct OBD II data wire-in, and a vibration-damped quick-release cradle.

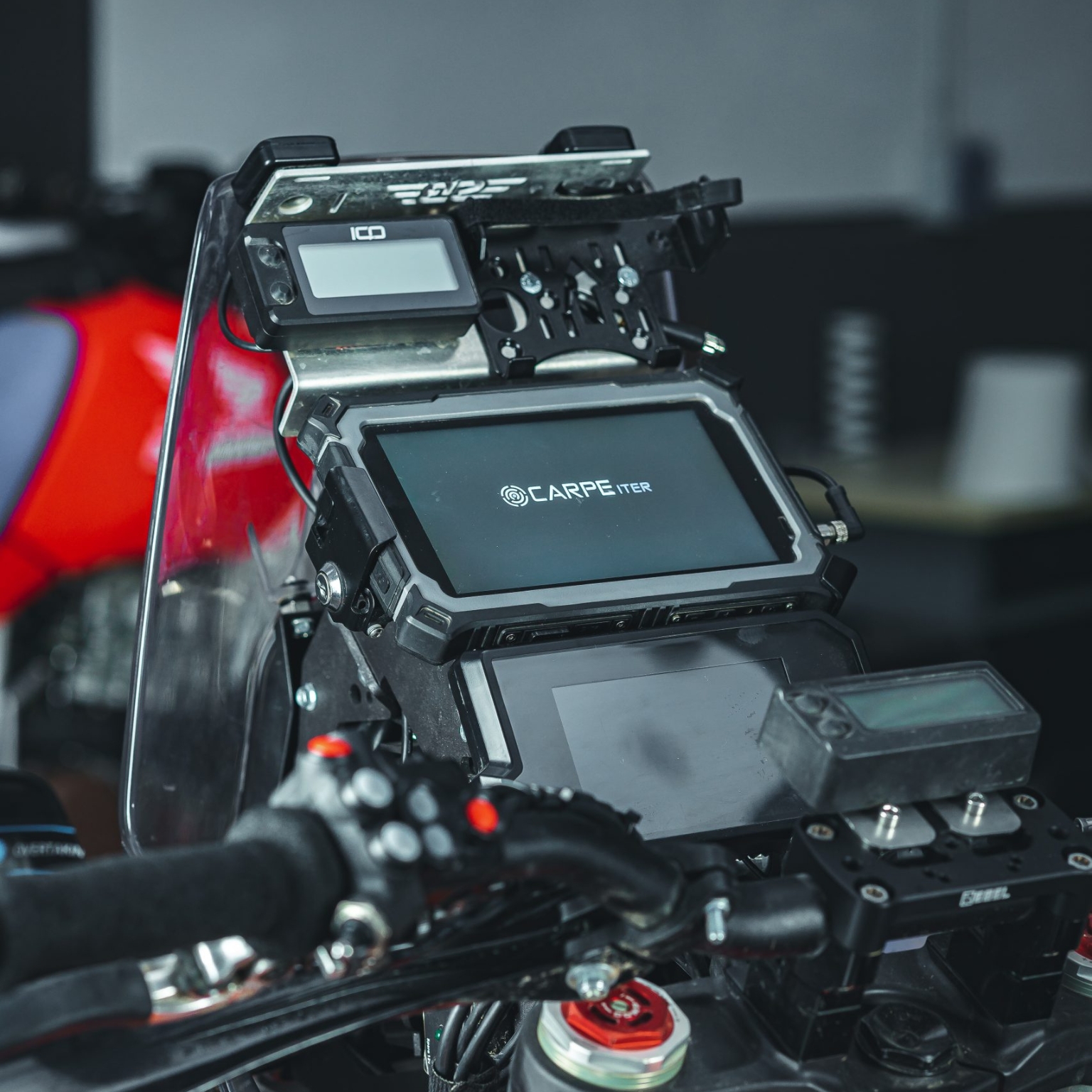

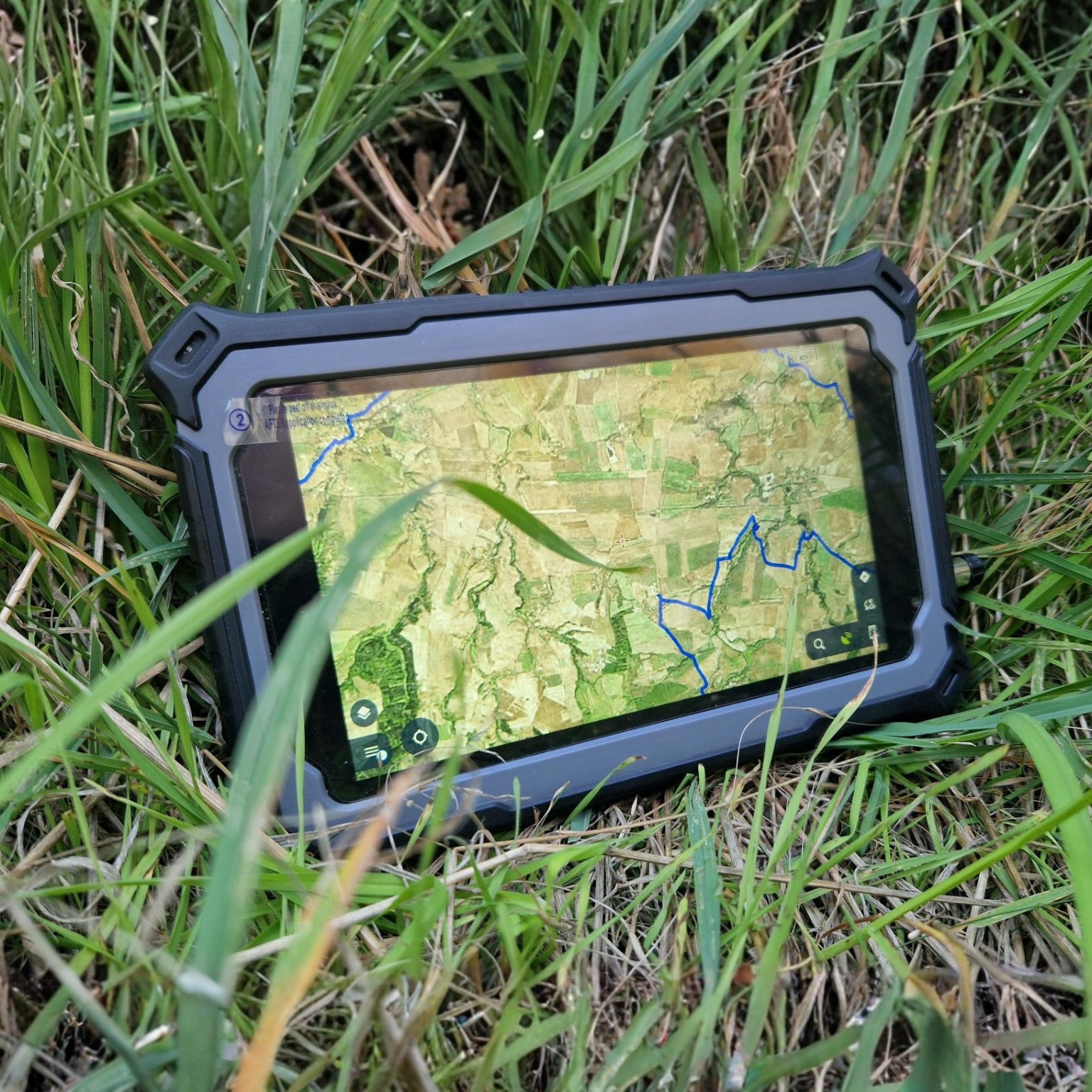

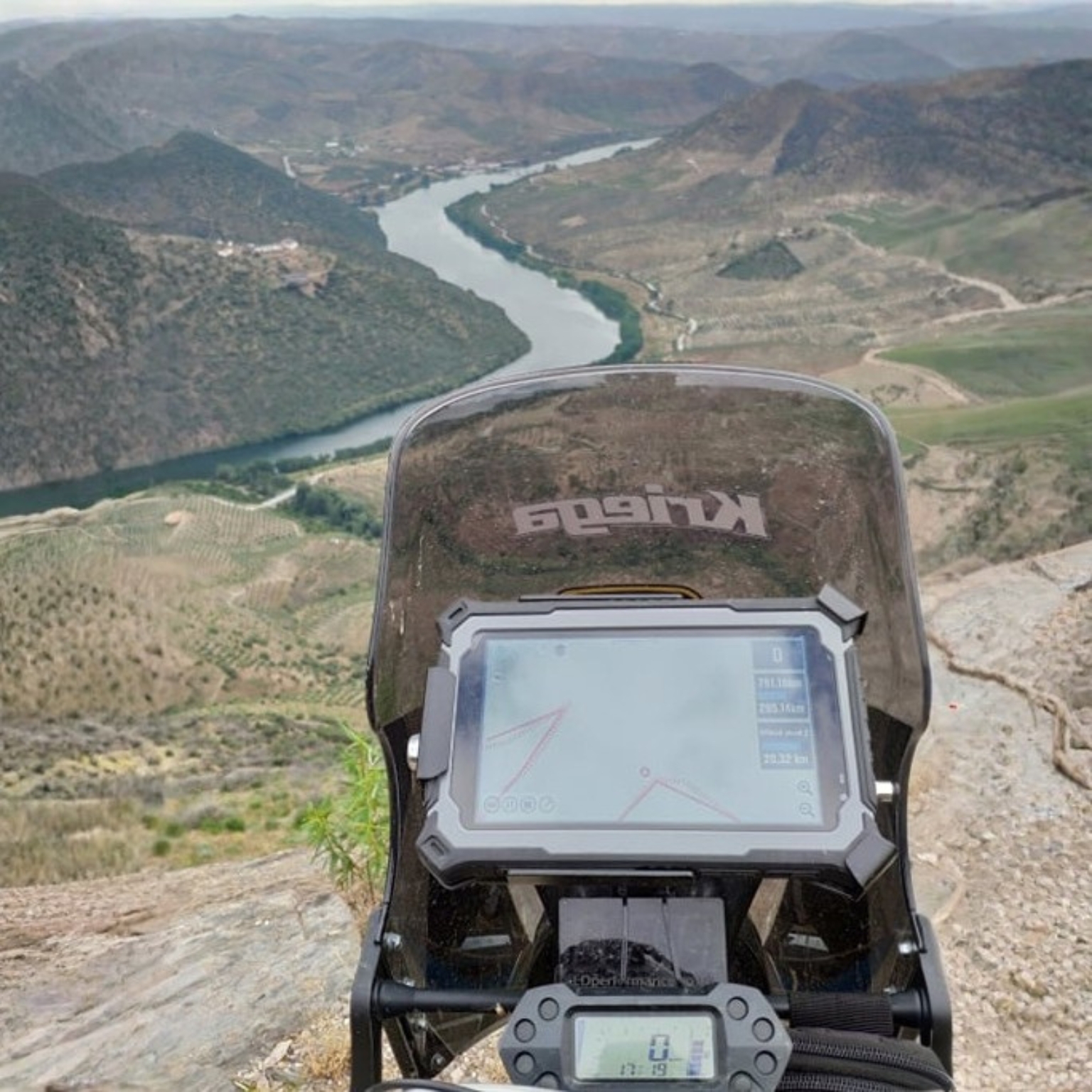

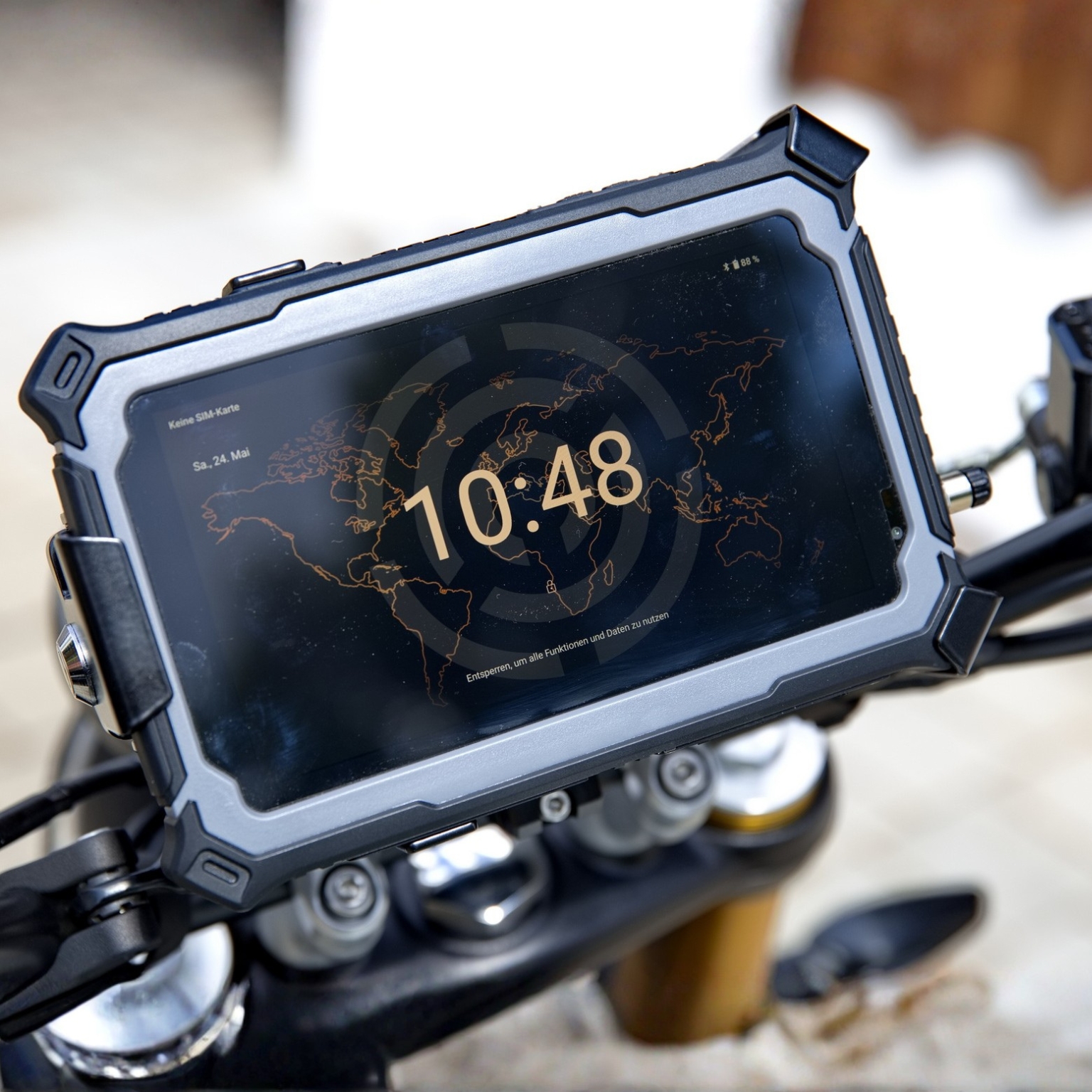

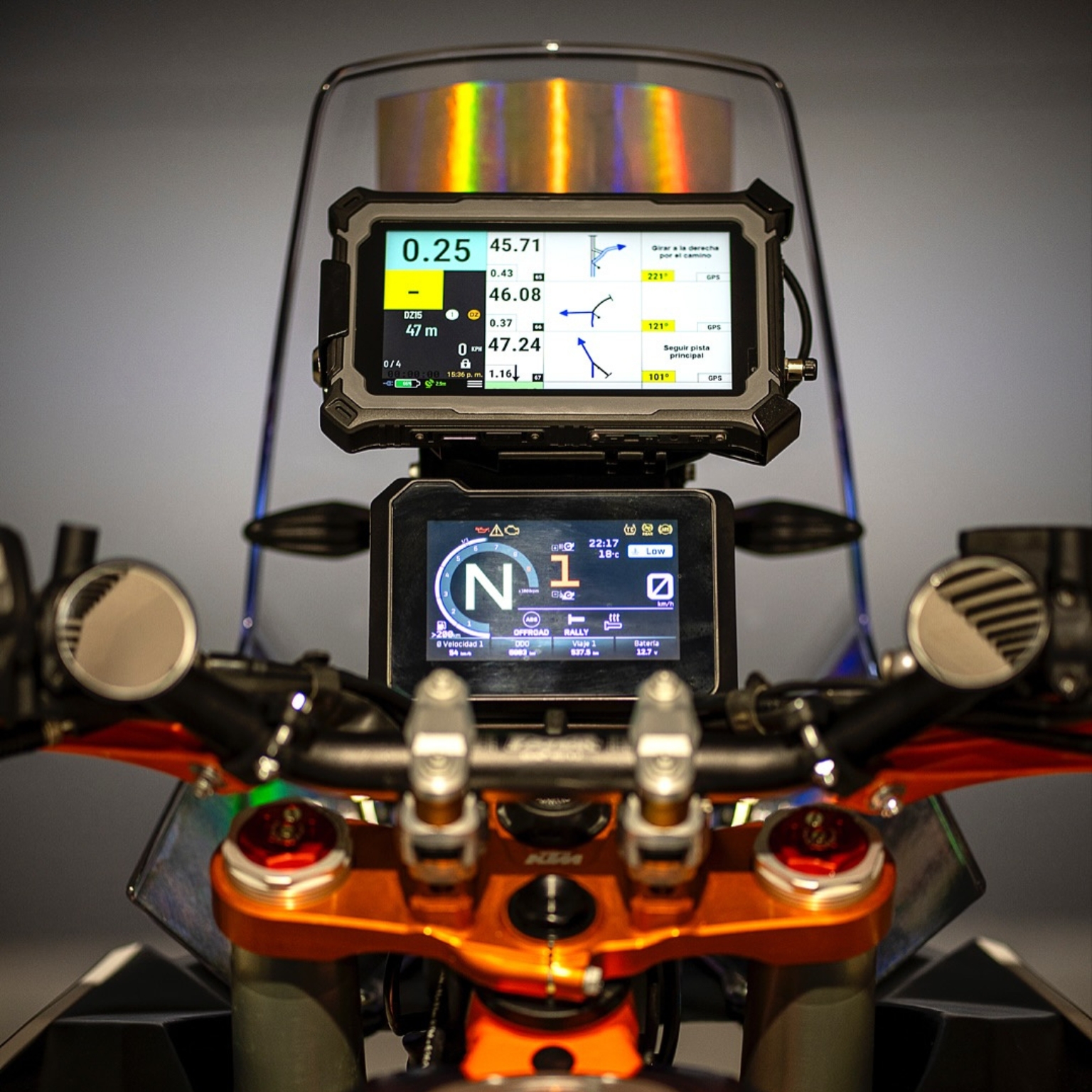

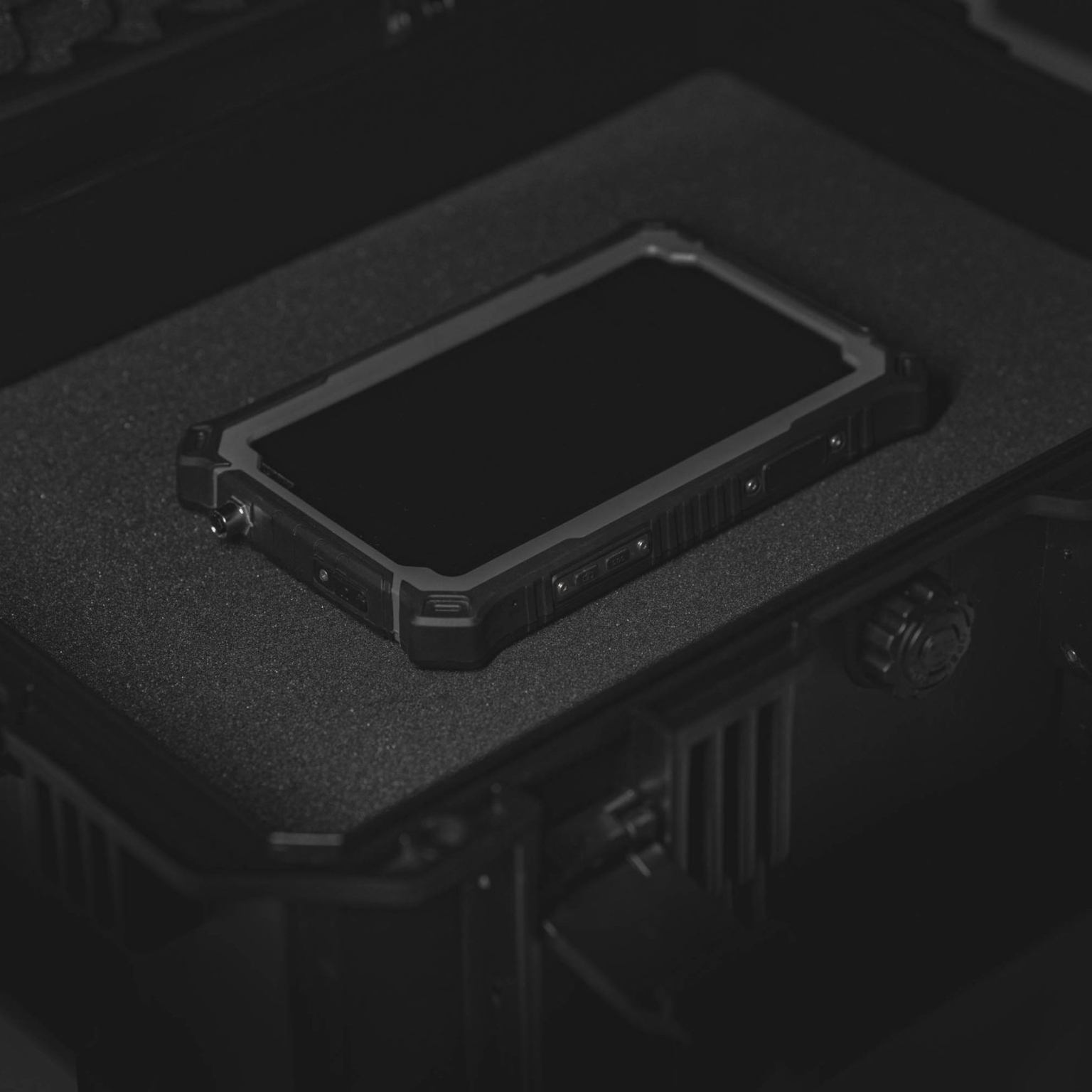

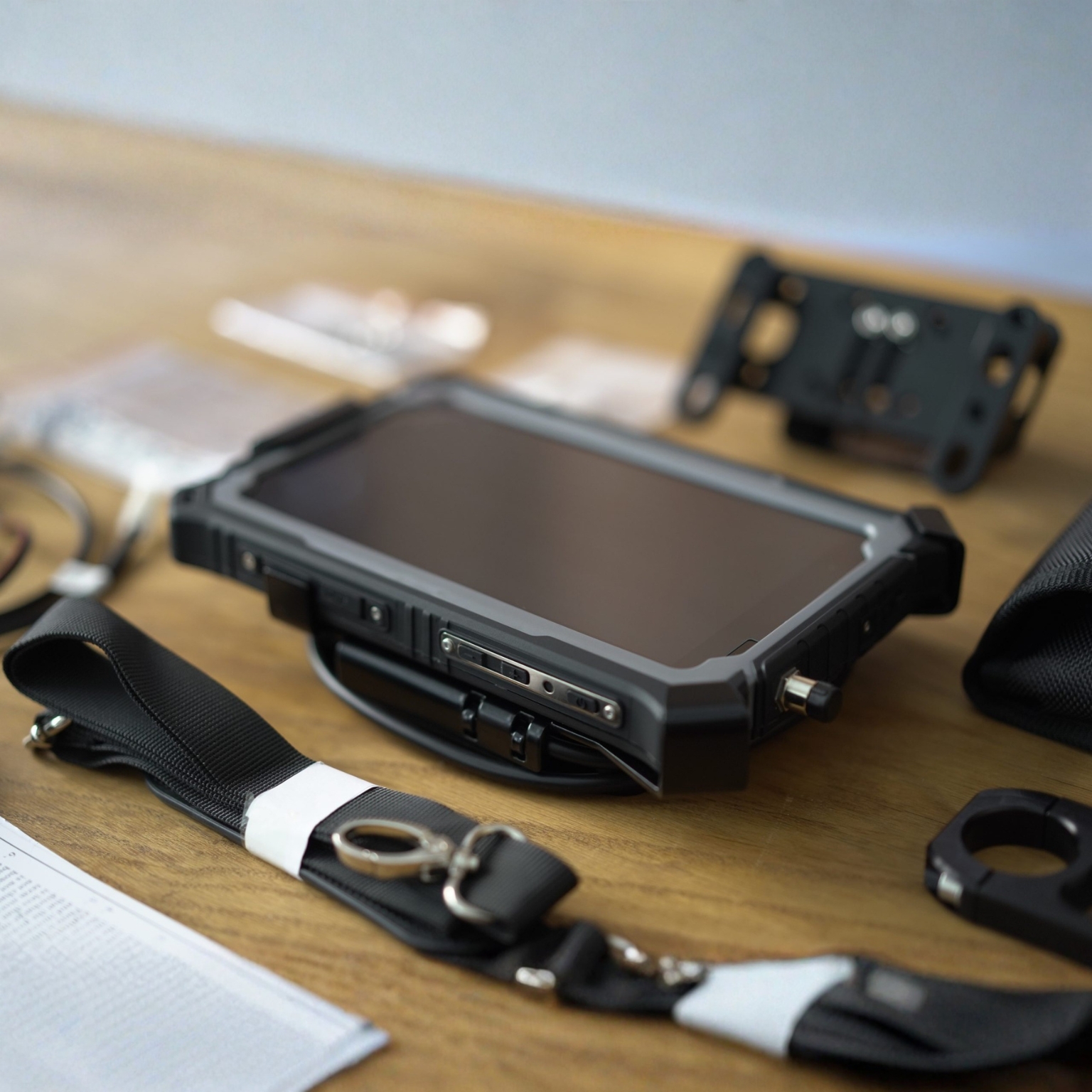

CI PAD V4D
Built to dominate the most demanding rally environments on Earth. The CI PAD V4D is an alloy-reinforced workstation segment of Carpe Iter gear designed to survive where generic consumer electronics fail.
- Indestructible Build: Alloy-reinforced chassis engineered to survive high-velocity impacts.
- Extreme Reliability: Active spring-pin charging system ensures power delivery through heavy vibrations.
- Rally-Grade GNSS: Dual-band L1+L5 positioning for sub-meter accuracy in deep canyons.

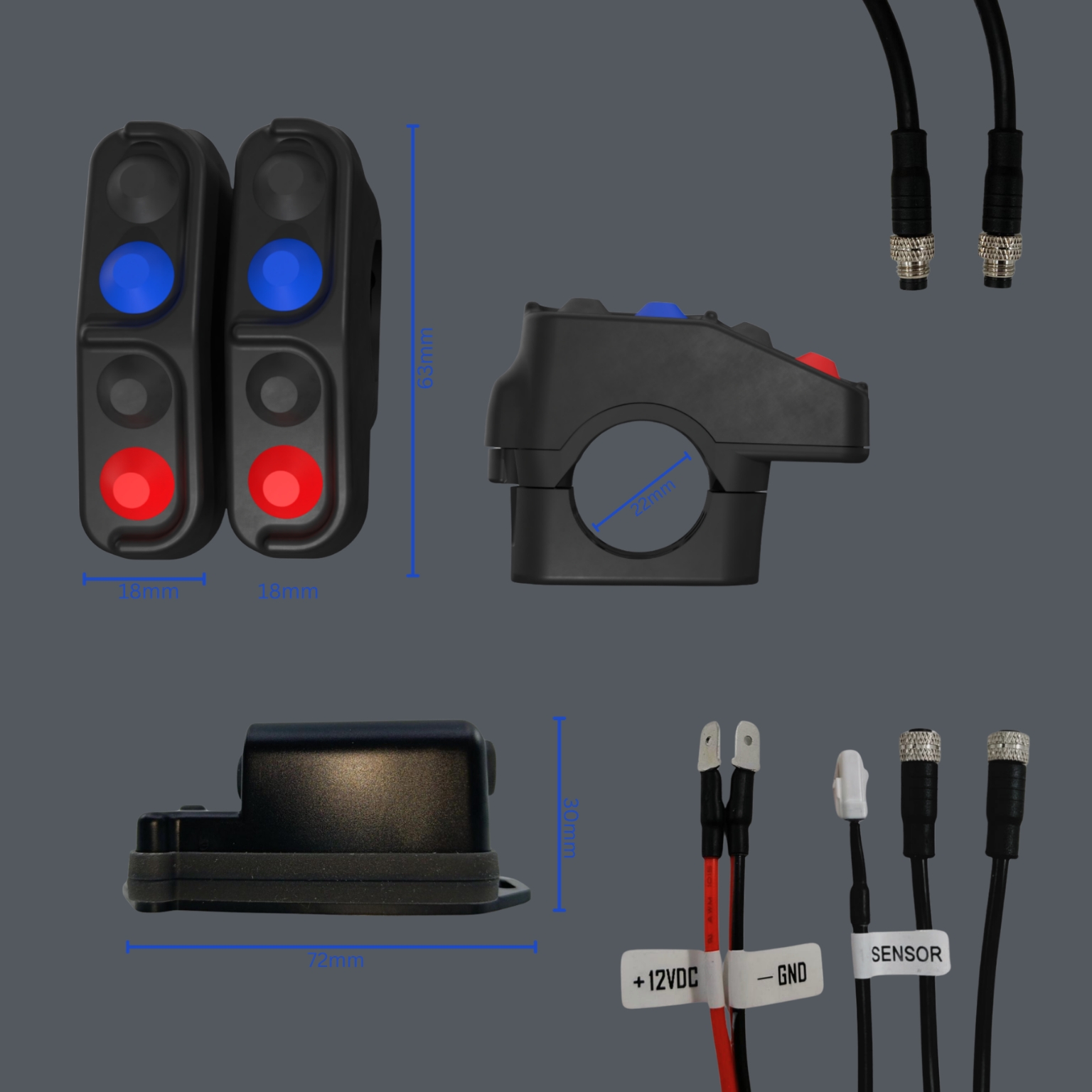

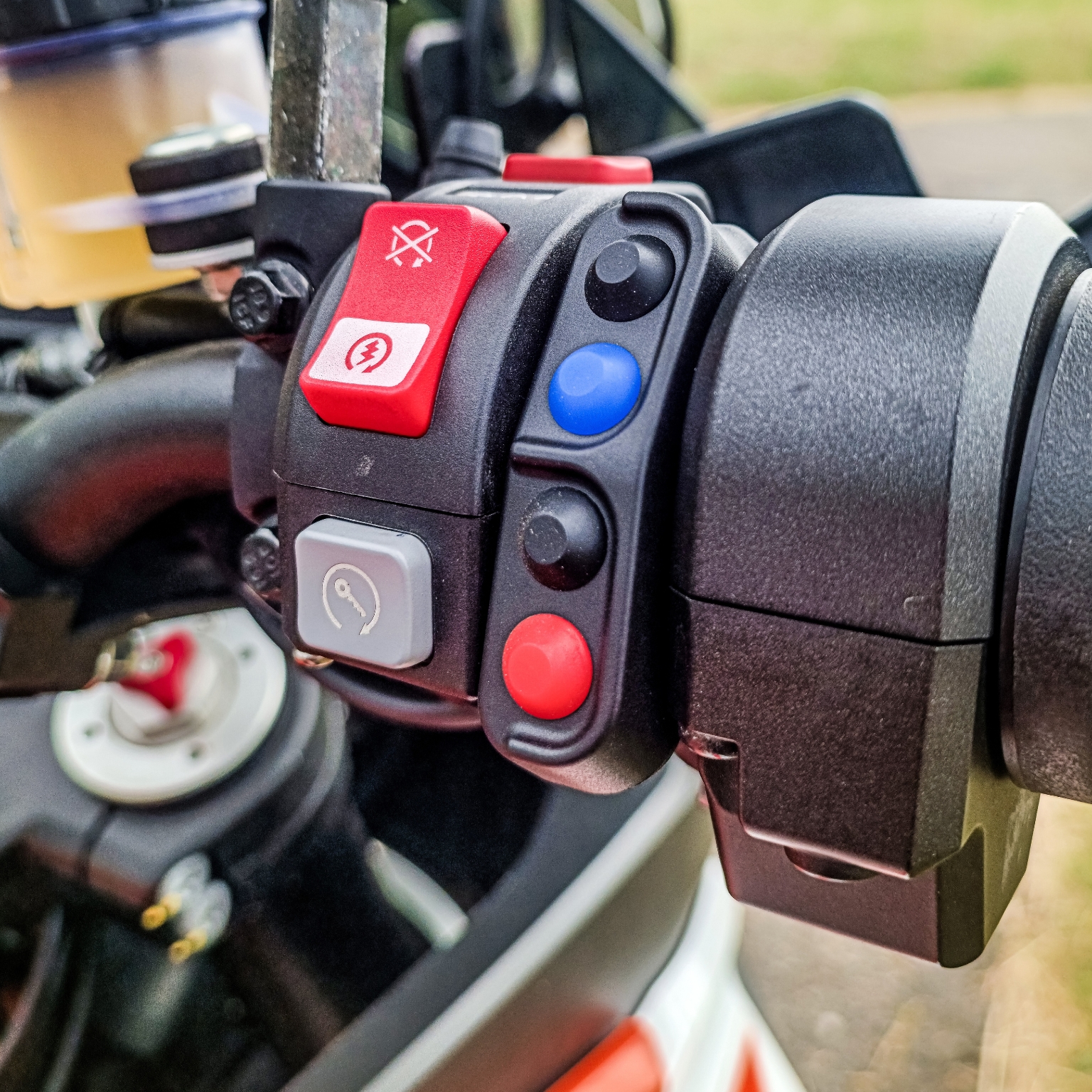

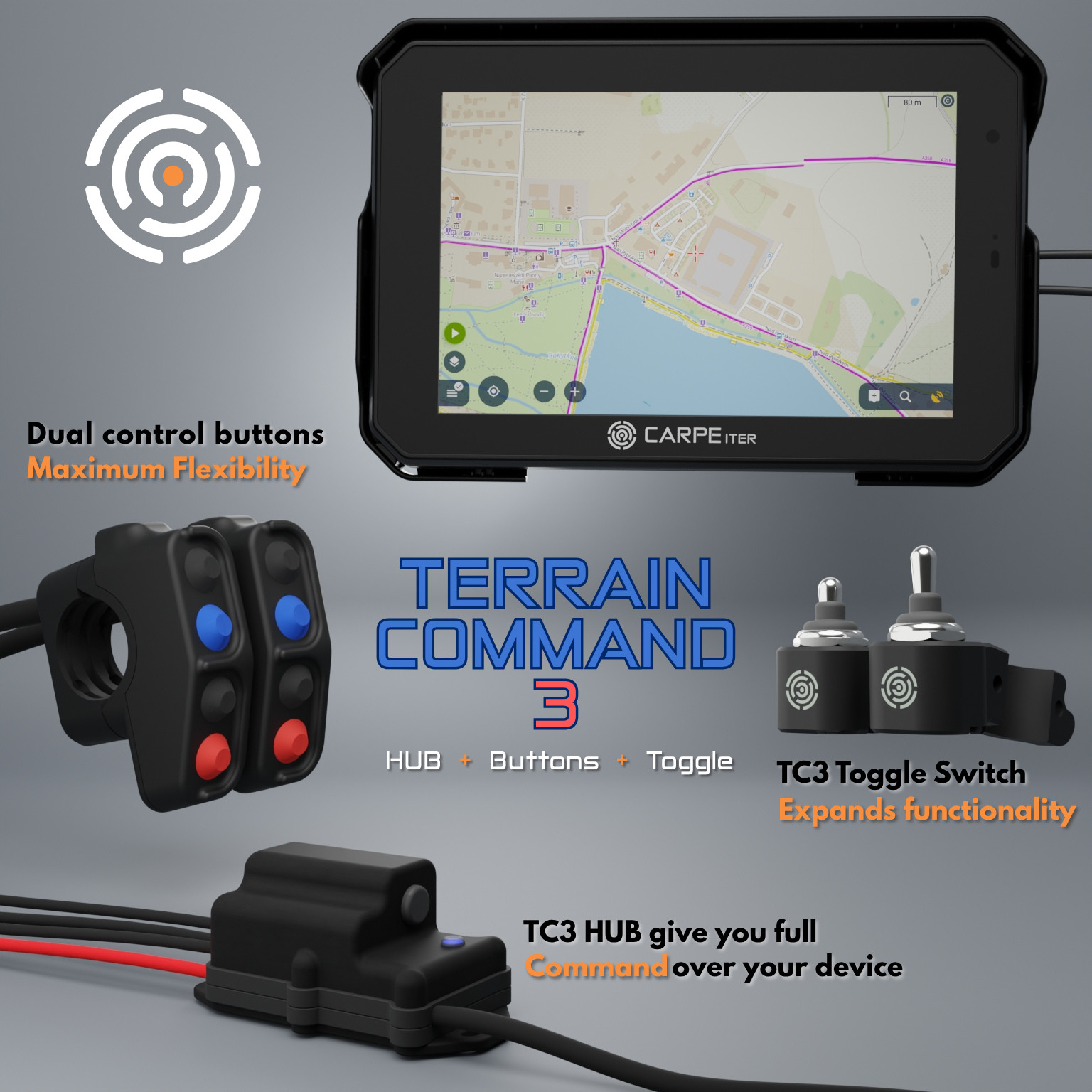

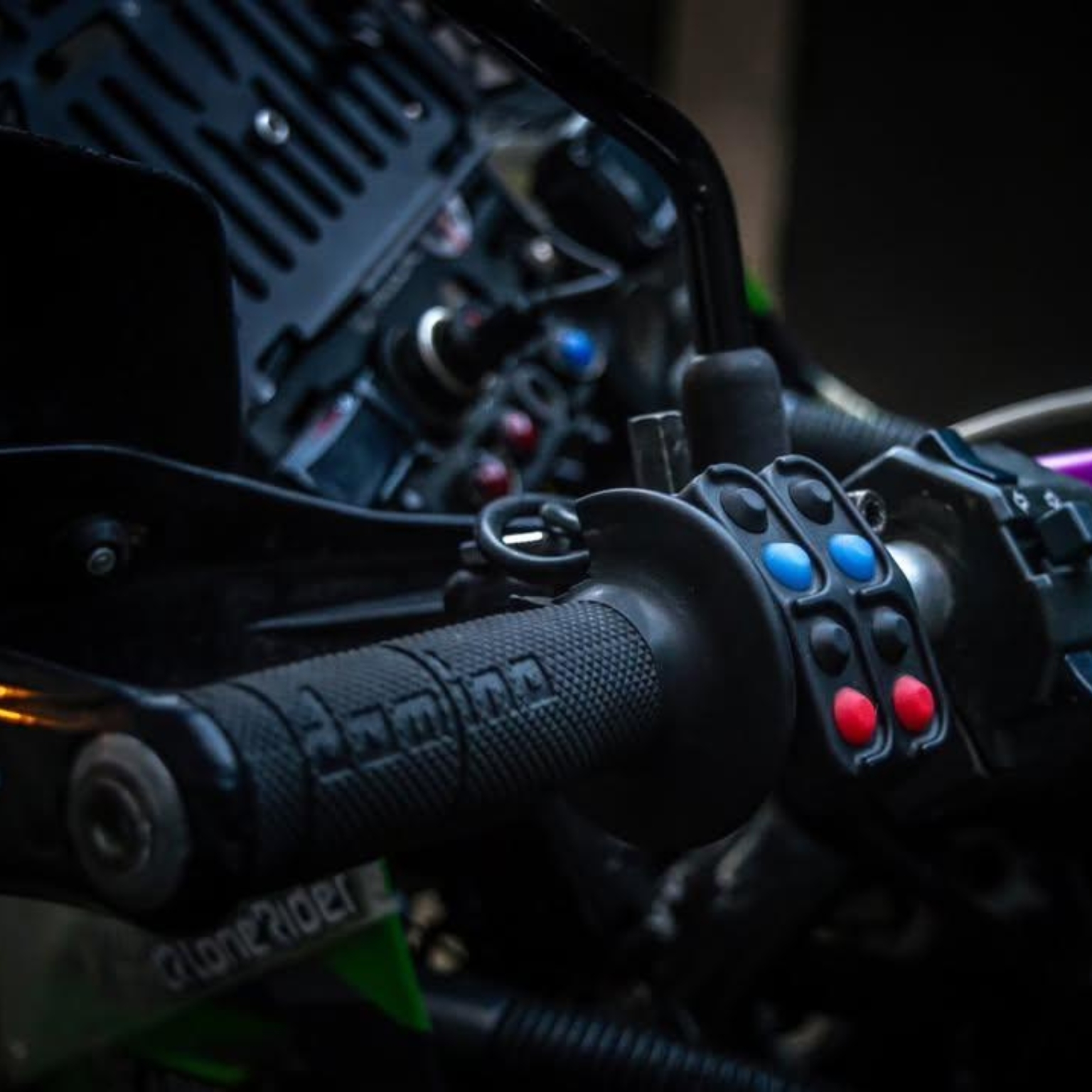

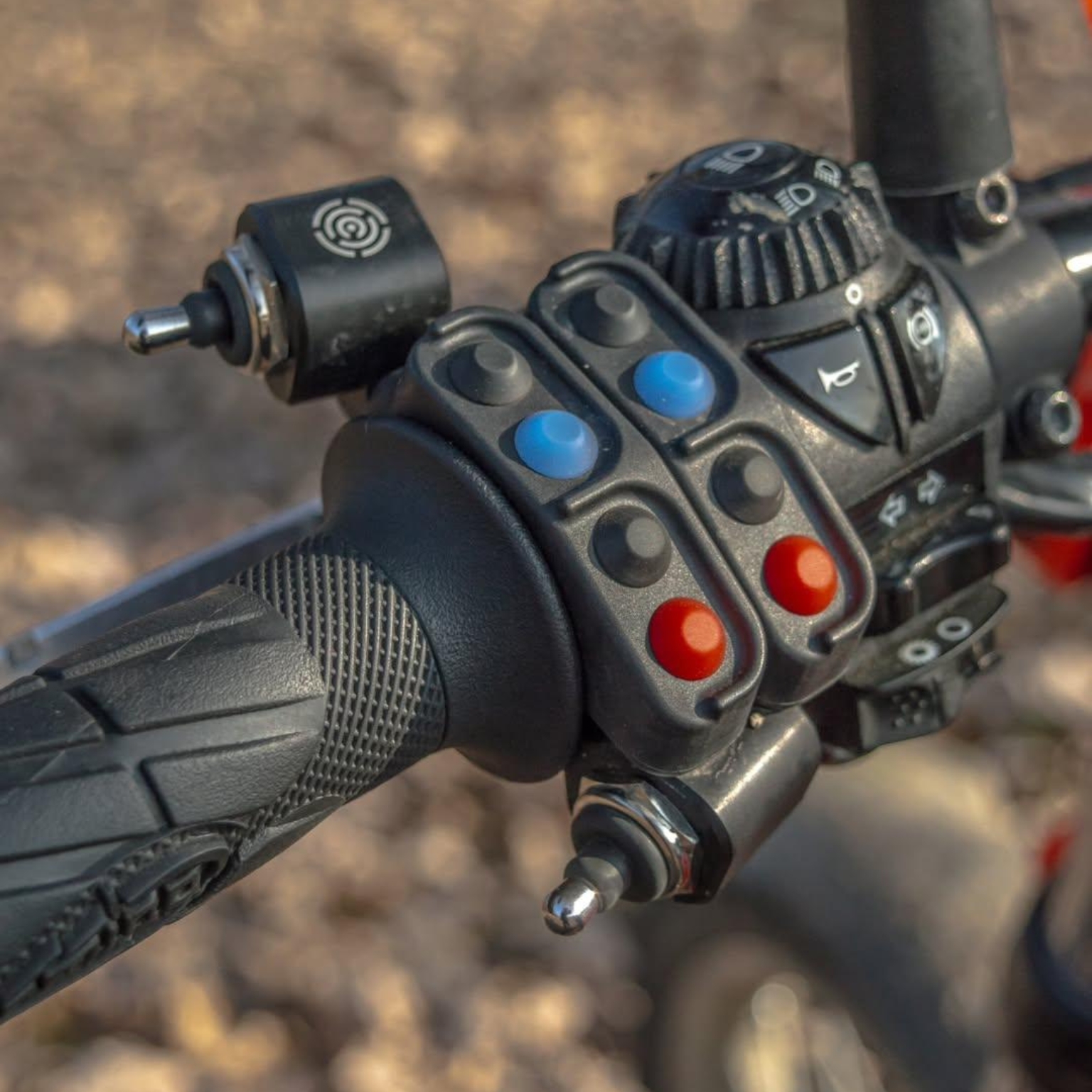

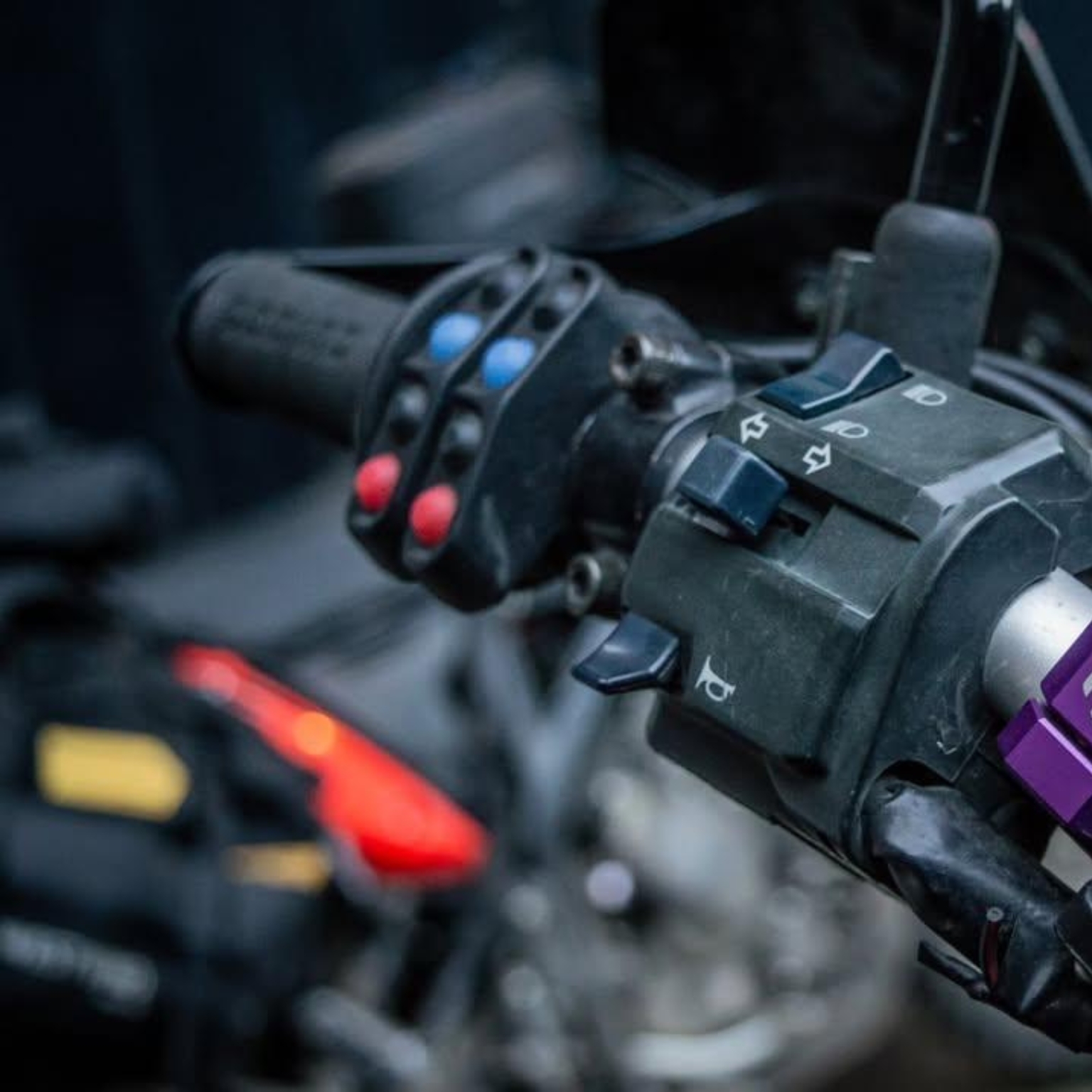

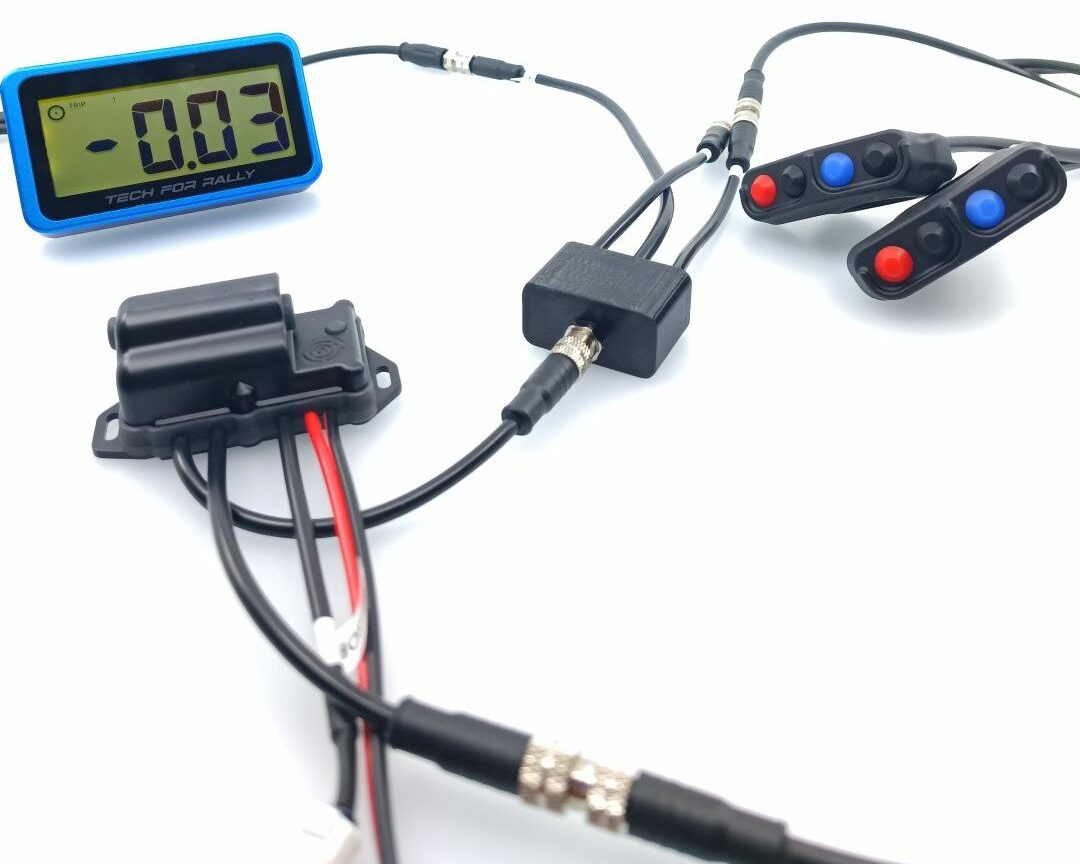

TERRAIN COMMAND III
The Terrain Command III is a modular, high-performance controller engineered especially for off road riding and rally. It is a modular system with electronics decoupled from the physical controls, allowing riders to mix and match standard Nylon Buttons with CNC-machined rally toggles to fine-tune the setup to any riding needs.
- Modular Architecture: One central HUB brain manages up to 12 inputs, pairing with ultra-slim Nylon Buttons, aluminum toggles, or traditional analog rally controls.
- Wheel Precision: Pulls raw distance data directly from a solid-state front wheel sensor.
- Near-Indestructible: Fully epoxy-potted electronics with internal super-capacitors.

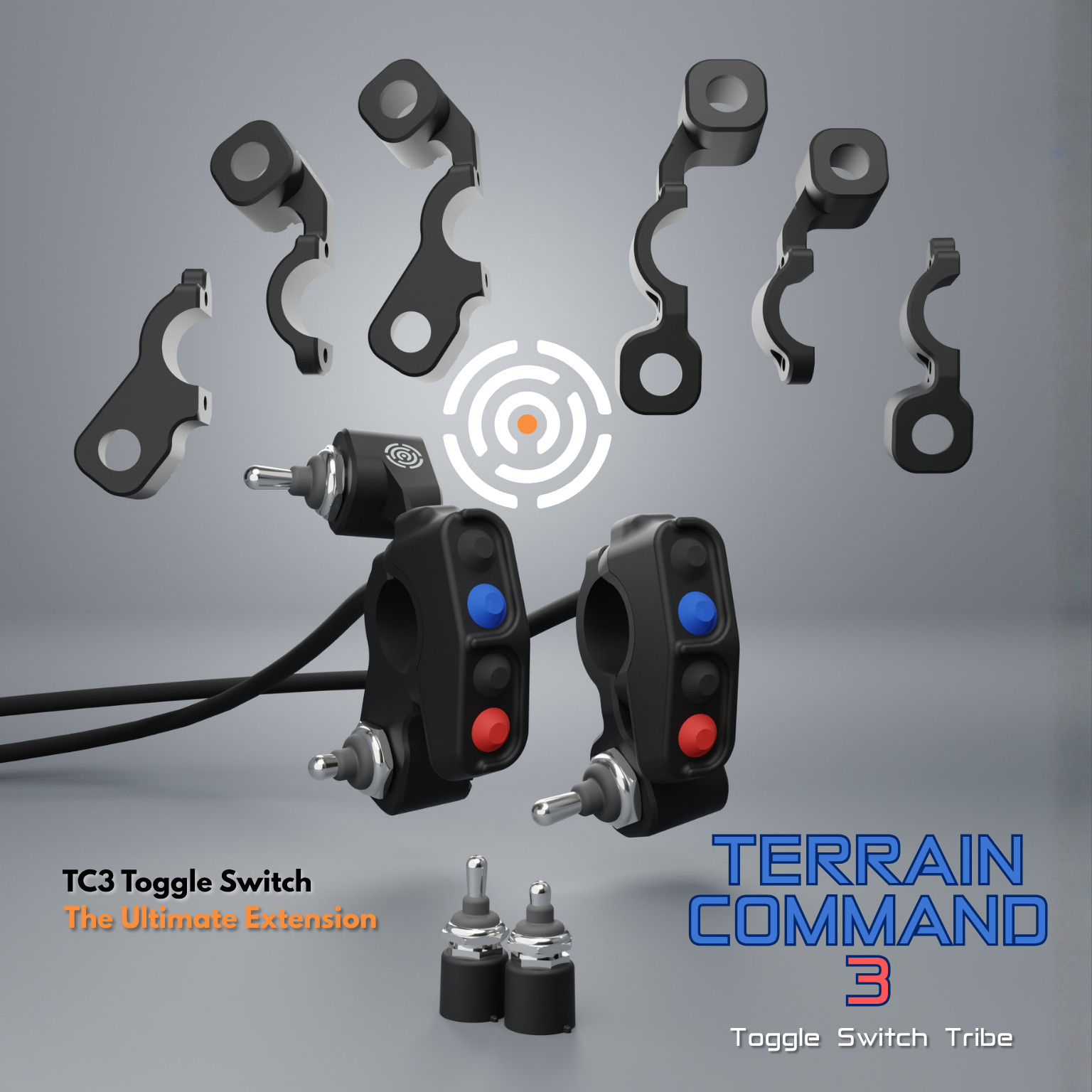

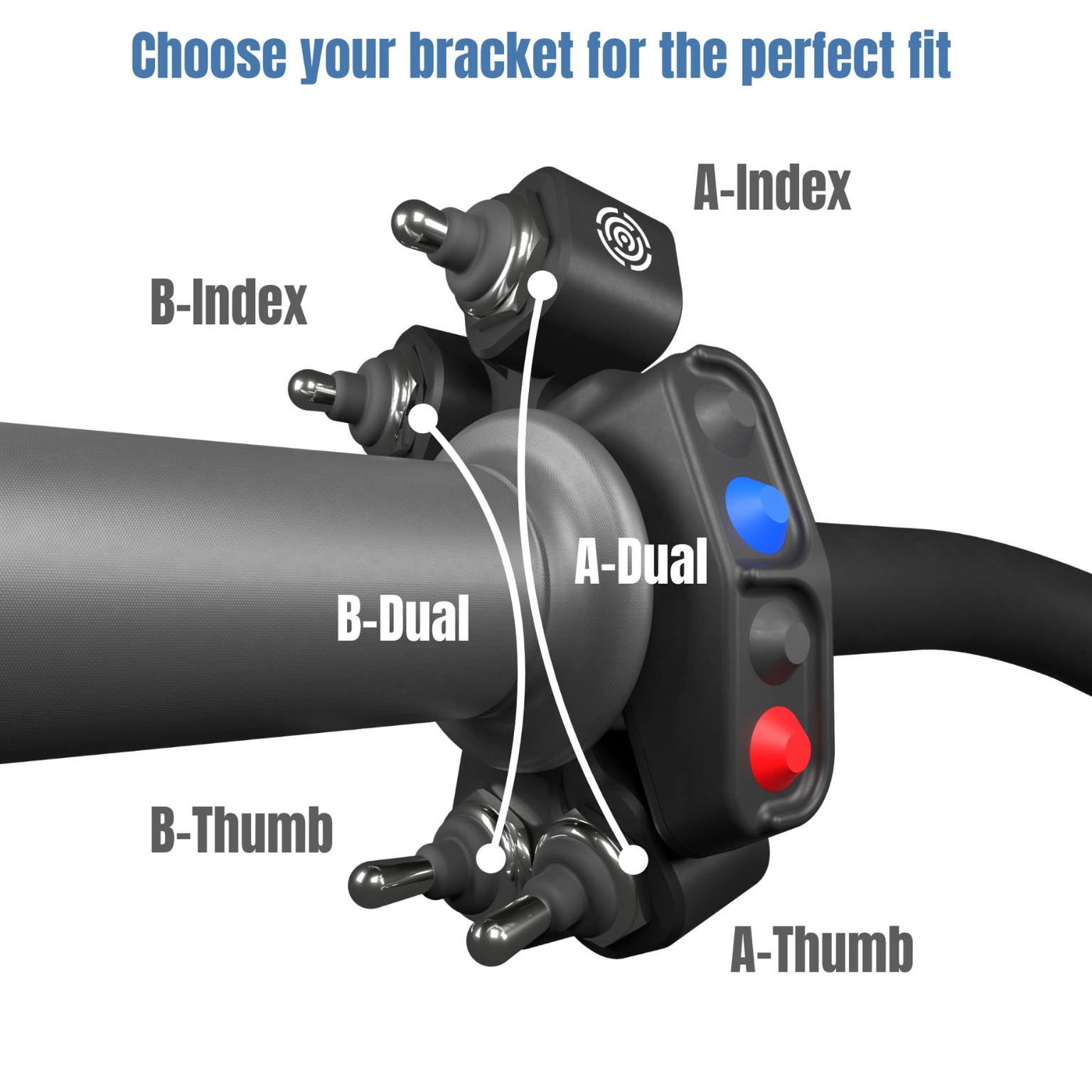

TC3 TOGGLE SWITCH
The ultimate modular extension for Terrain Command. Ruggedized, CNC-machined toggle levers designed for precise, glove-optimized control over digital roadbooks, maps, and tripmaster functions.
- Adjustable Ergonomics: Independent toggle angle setting even after installation.
- Dual-Toggle Options: Index and thumb-activated configurations for any handlebar.
- Extreme Duty: IP68-rated, replaceable metal levers.
ADVENTURE CONTROL
The Adventure Control is the universal handlebar interface designed for adventure and touring. Featuring a slim, ergonomic profile that fits right next to the grip, it packs 7 tactile control elements.
- Solid-State Precision: Magnetic joystick eliminates mechanical wear.
- Intelligent Mapping: App-specific reconfiguration.
- Smart Power: Automated battery-saving modes.
BMW CONTROL
The BMW Control integrates the stock BMW Multi-Controller (Wonderwheel) with any standard Android smart device or Carpe Iter navigation unit. It unlocks seamless app control while keeping all native factory dashboard functions intact.
- Plug-and-Play Hub: Mates directly to factory connector.
- Live Telemetry: Relays real-time data to your screen.
- Rugged Expansion: Waterproof, fully potted components.

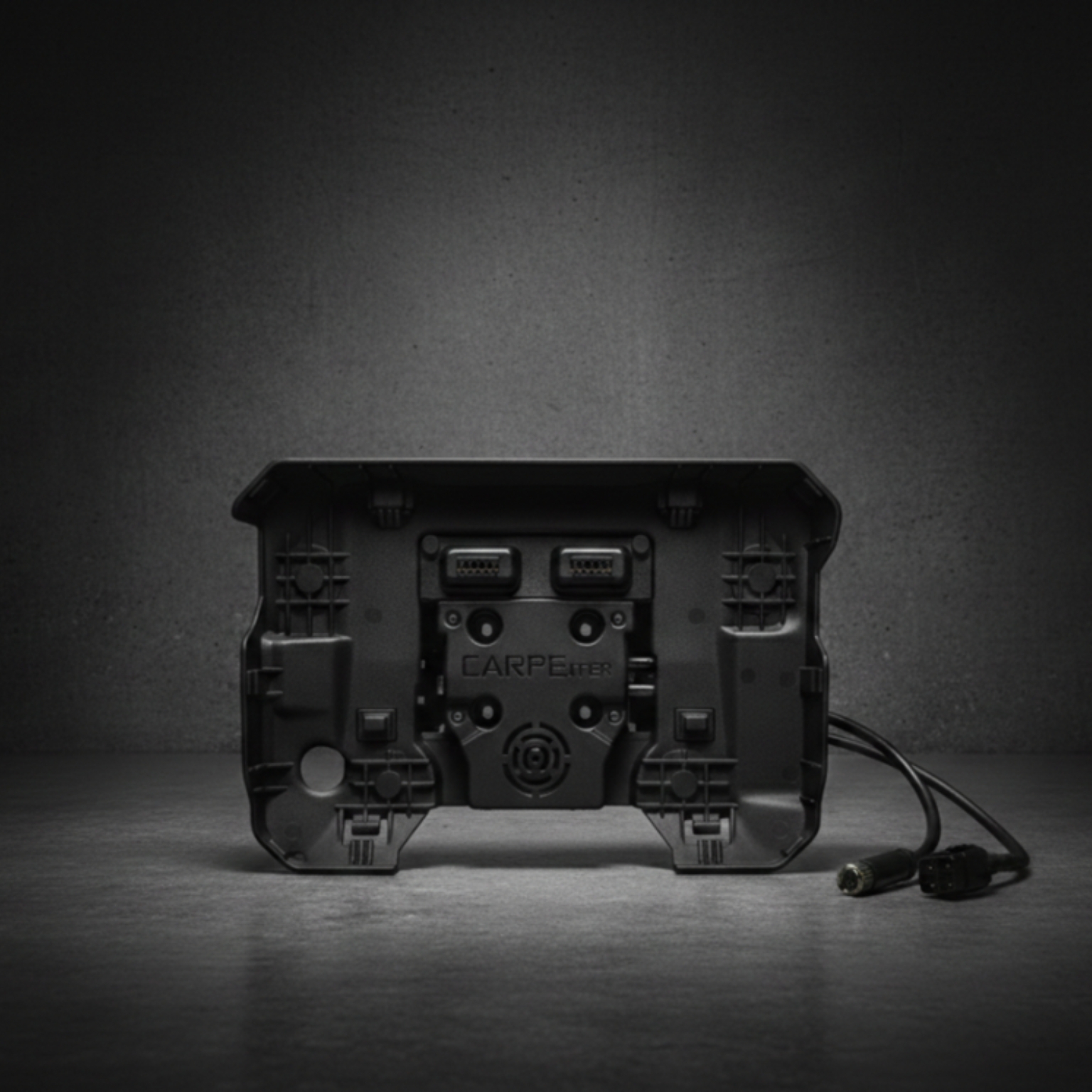

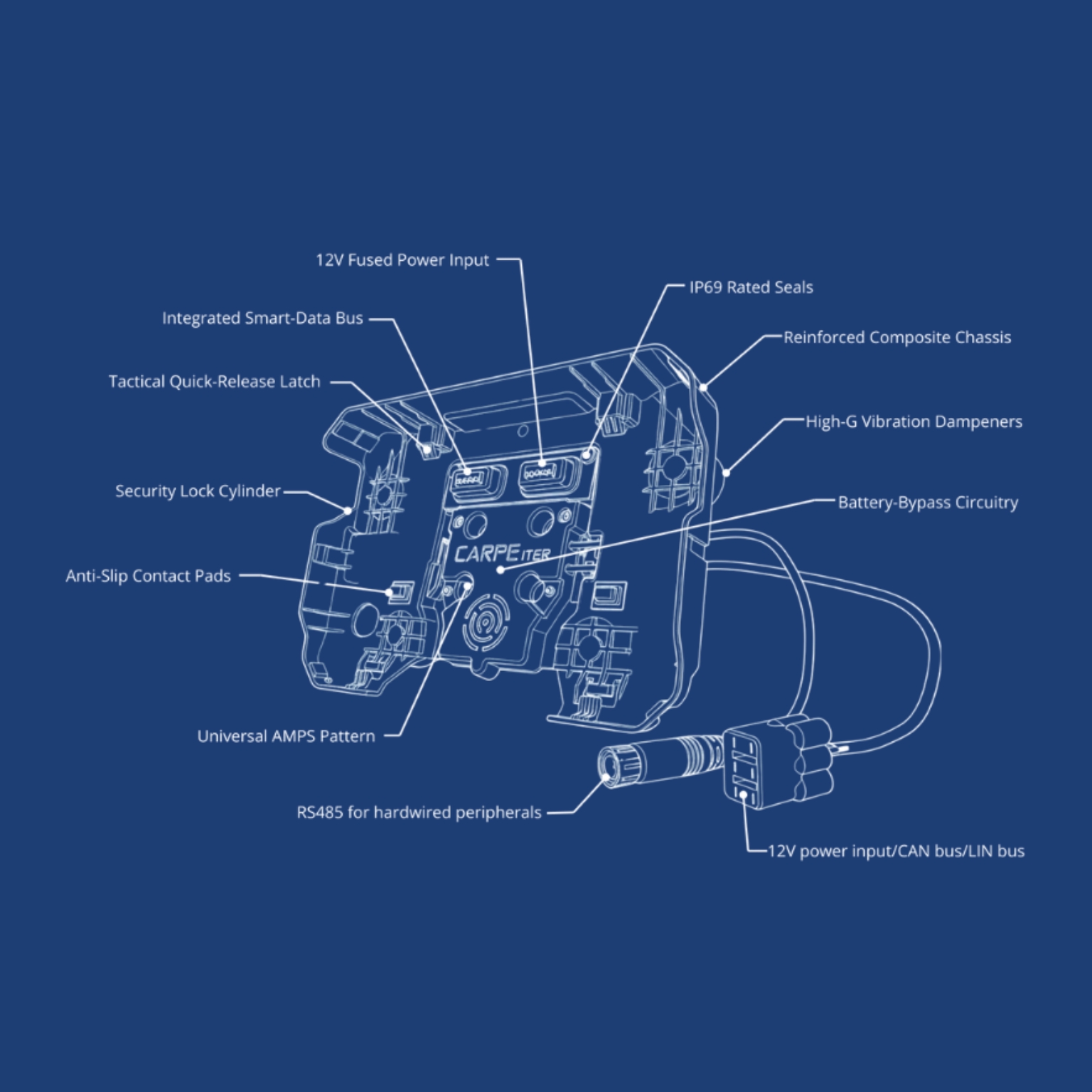

CARETTA CRADLE
It's not just a holder. This cradle is packed with electronics designed to push the boundaries of what a navigation device can do, ensuring charging and stable communication.
- Smart Power: Voltage stabilization handles electrical spikes.
- Vibration Isolation: Silicone dampers isolate from engine chatter.
- Hardwired Integration: Direct connectivity for remote controllers.

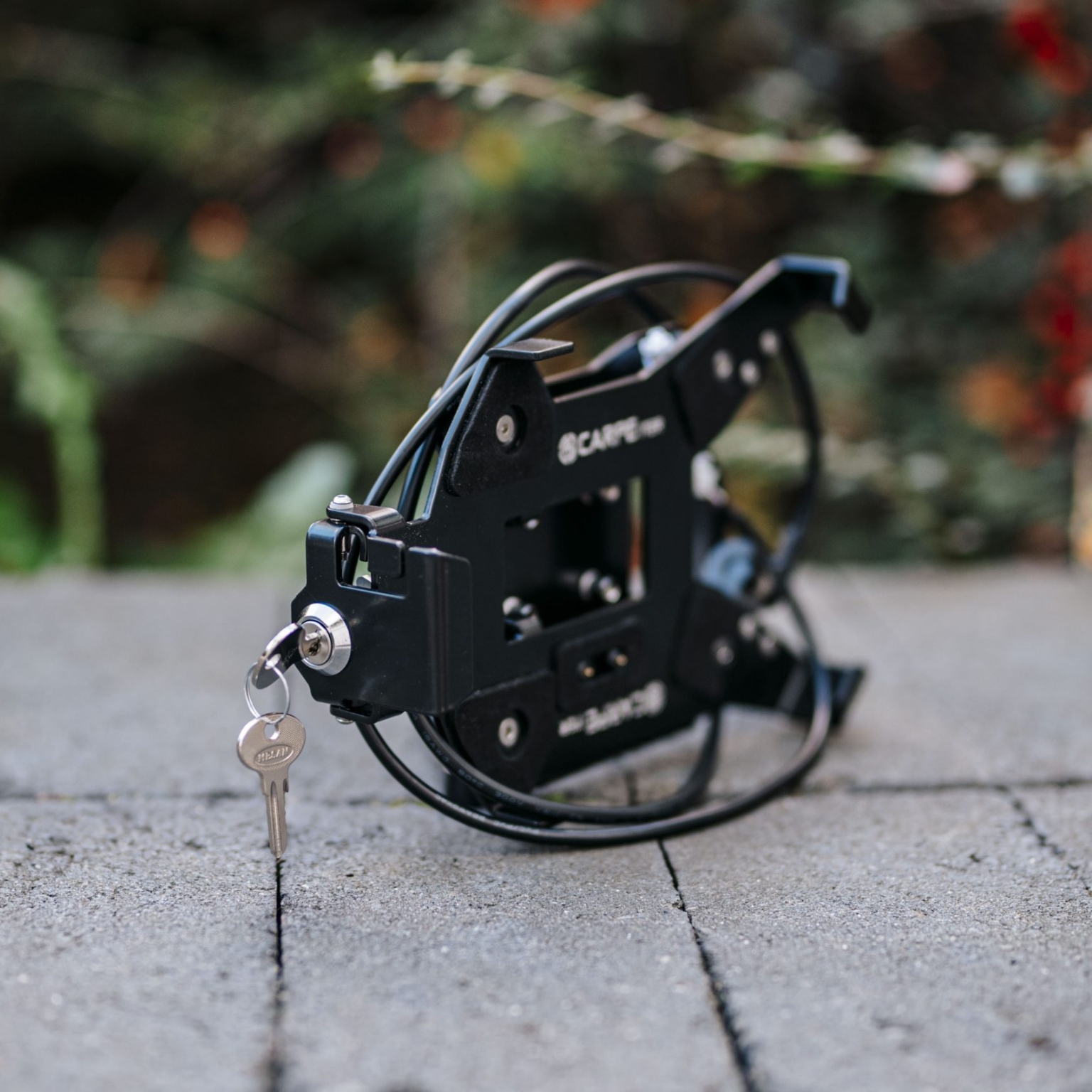

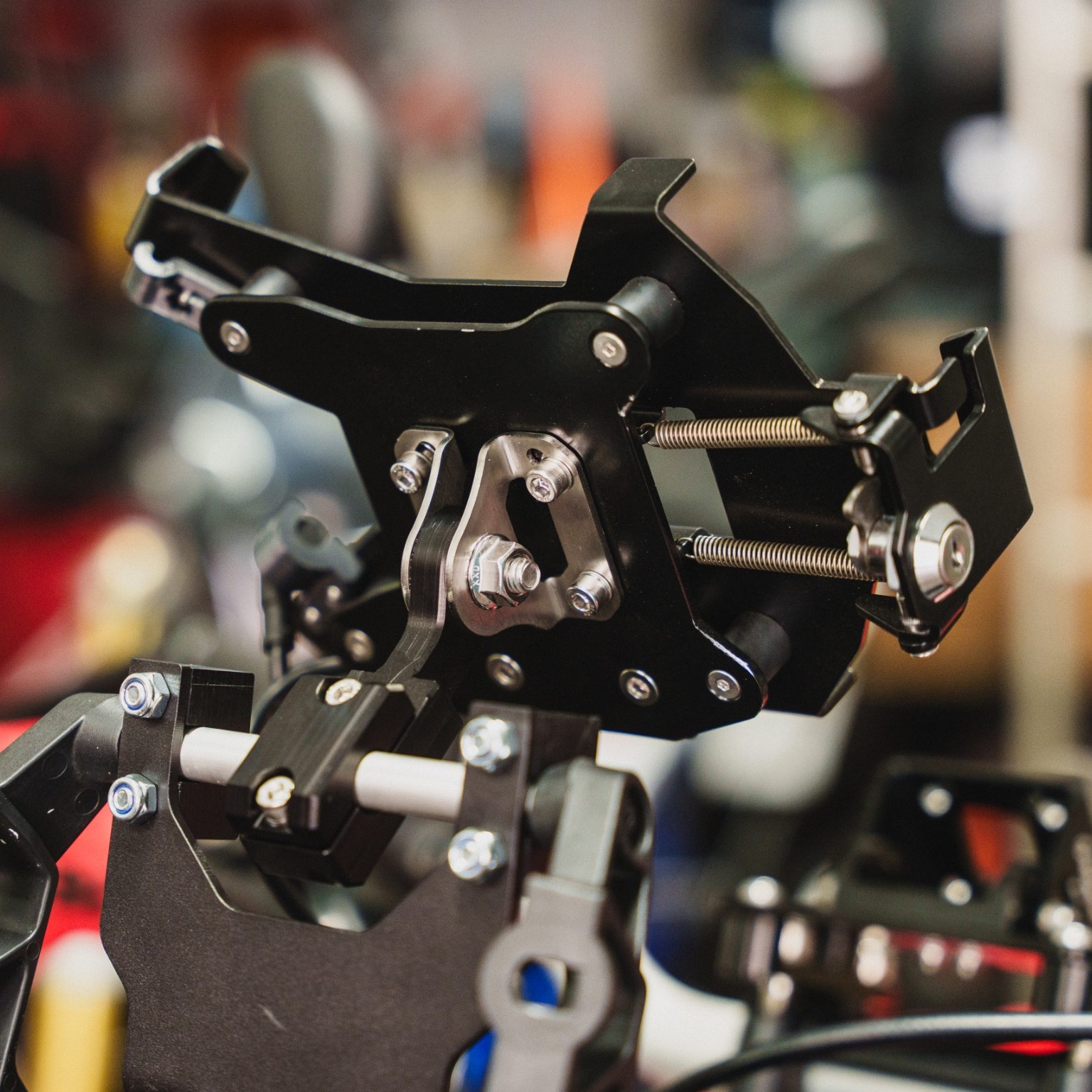

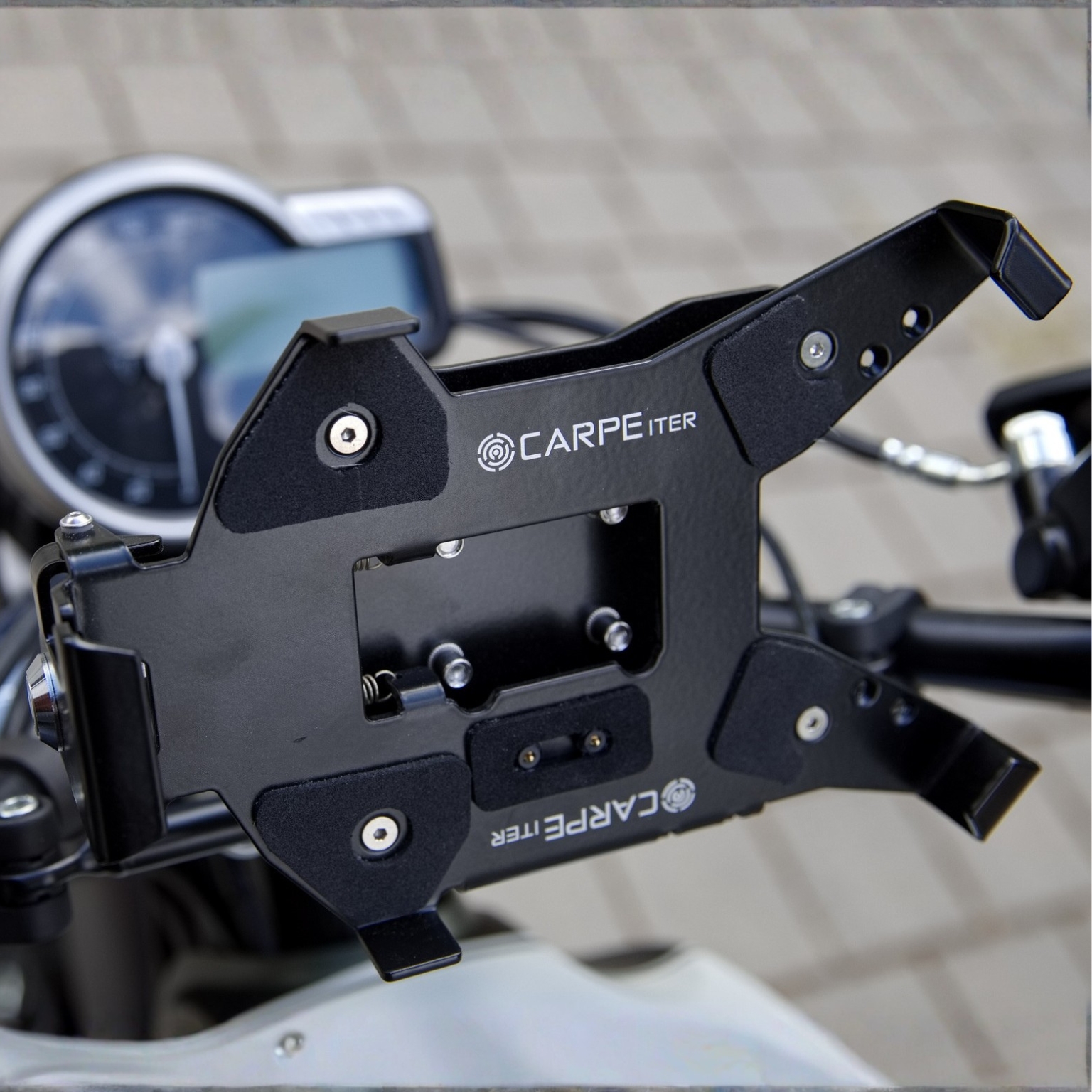

V4 HOLDER
Designed specifically for the CI Pad series. This lockable, vibration-dampened holder provides a secure, rust-proof mounting solution available in both active and passive configurations.
- Rugged Core: Aluminum and stainless steel.
- Vibration Mitigation: Rubber dampers included.
- Lockable Design: Prevents theft of opportunity.
AUTO-PROFILING // SUPPORTED APPS
What does "App Support" actually mean?
When we say an app is supported, your handlebar controller acts as a direct physical extension of your touchscreen—allowing you to pan maps, zoom, toggle layers, and switch menus without taking your hands off the bars.
SUPPORTED DATABASE
UPDATED_2026_05_17
SUPPORTED FUNCTIONS
- Map panning
- Zooming
- Re-center
- Route overview
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
- Exit navigation when destination reached
- Navigate to predefined location
- Change map style
- Lookup next turning point
AUTO-PROFILE INTEL
Google Maps is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Native controller protocol integration
- Map panning and zooming
- Roadbook navigation control
- Quick view toggling & app switching
- Dynamic widget interaction
KNOWN BUGS & LIMITATIONS
None. Natively integrated via dedicated protocol.
PLANNED FEATURES
Continuous updates in direct coordination with Thork Racing.
AUTO-PROFILE INTEL
DMD2 features direct, native integration with Carpe Iter hardware. NGH automatically identifies active states to handle map navigation, trip instruments, and launcher screens seamlessly.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map panning – smooth
- Zooming & Map Centering
- Map Orientation
- Manual route re-calculation (dynamic nav)
- Track recording start / pause
- Switch to previous map style
- Enable / disable map overlay
PLANNED FEATURES
- Skip to next waypoint
- Navigate to predefined location
- Enable / disable custom dashboard
- Add waypoint on current location
KNOWN BUGS & LIMITATIONS
Manual route re-calculation (long press on Zoom Out) is currently not available on BMW Control. The BMW zoom operates on a rolling wheel, which cannot register a long-press.
AUTO-PROFILE INTEL
Locus Map is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Map Centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Guru Maps is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Map Centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Gaia GPS is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Map Centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Mapy.com is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Map Centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Waze is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FEATURES
- In the Follow Mode:
- Map panning
- Zooming
- Map centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
APPLICATION INTEL
Curated Kurviger integration focuses on seamless map interaction, enabling winding route navigation with precise control. This app is dedicated to generating automated runtime configuration profiles, ensuring optimal responsiveness across diverse cockpit setups. Automated profile integration is now active.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Map Centering
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Calimoto is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Re-Centering
- Cycle arrival time
- Start Navigation / skip waypoint
- Route overview
- Open in-app menu
- Navigate in-app menu
KNOWN BUGS & LIMITATIONS
MRA has specific way of handling the commands for BMW Control and other Carpe Iter Controllers. The functions will differ depending on your MRA configuration (Carpe Iter generic or BMW Control specific profile). In case of odd behavior, please consult MRA support articles. All Carpe Iter controllers can now be fully customized so you can tweek the behaviour also by modifing the commands dispatched by individual controller input elements.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
MyRoute-app is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Re-Centering
- Toggle route mode
- Tilt up/down
- Start/pause ride
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Stegra.io is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Re-Centering
- Start/stop activity
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
WHIP Live is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Map Panning
- Zooming
- Re-Centering
- Screen mode
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
OS Maps is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Manual in-app setup (controller button assignment through internal configuration interface)
- Supports loading PDF roadbooks from local storage
- Supports loading OpenRally roadbooks from local storage
KNOWN BUGS & LIMITATIONS
HUD key cannot be mapped – it must remain reserved for the Carpe HUD system.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Piste Roadbook Reader relies on manual button mapping inside its dedicated settings panel. Custom, application-specific keycodes are integrated into the NGH environment to ensure broad cross-compatibility once assigned.
CUSTOMIZABLE CONTROLS
All controller inputs can be customized to fit your setup inside the Next Generation HUD (NGH) application.
NGH Portal ➤ Visit
SUPPORTED FUNCTIONS
- Roadbook scrolling
- ODO adjustments
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Rally Roadbook Reader is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- Total ODO reset
- Partial ODO reset
- Partial ODO adjustment
- Roadbook scroll
- Lock screen
- Inverted orientation supported
KNOWN BUGS & LIMITATIONS
Carpe Iter HUD displays over the app and is functional, but the short-cuts are not intuitive.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Rally Roadbooks Terrapirata is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS
- ODO Adjustment
- Roadbook Scroll up and down
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
RallyMoto is natively supported, the NGH software automatically recognizes the app. The controller layout reconfigures dynamically to your specific hardware without requiring manual switching.
DEFAULT CONTROLLER CONFIGURATIONS
Click a hardware profile to view the full-screen layout mapping.
SUPPORTED FUNCTIONS (PLAYER VIEW)
- Volume control
- Next / Previous song selection
- Play / Pause execution via the Carpe HUD
KNOWN BUGS & LIMITATIONS
None.
PLANNED FEATURES
No upcoming features are currently planned.
AUTO-PROFILE INTEL
Spotify media control integration operates natively via system broadcast audio channels. The Next Generation HUD (NGH) environment routes media control calls safely across your hardware layout without requiring foreground view locking.
CUSTOMIZABLE CONTROLS
All controller inputs can be customized to fit your setup inside the Next Generation HUD (NGH) application.
NGH Portal ➤ Visit
UPCOMING INTEGRATIONS
WANT A DIFFERENT APP?
We are continuously building layout reconfigurations from active rider feedback. Visit our forum to submit tracking requirements and request custom mapping modules.
PROPOSE AN APPLICATION
English
